Brand : HEIDENHAIN
ECN 413
-

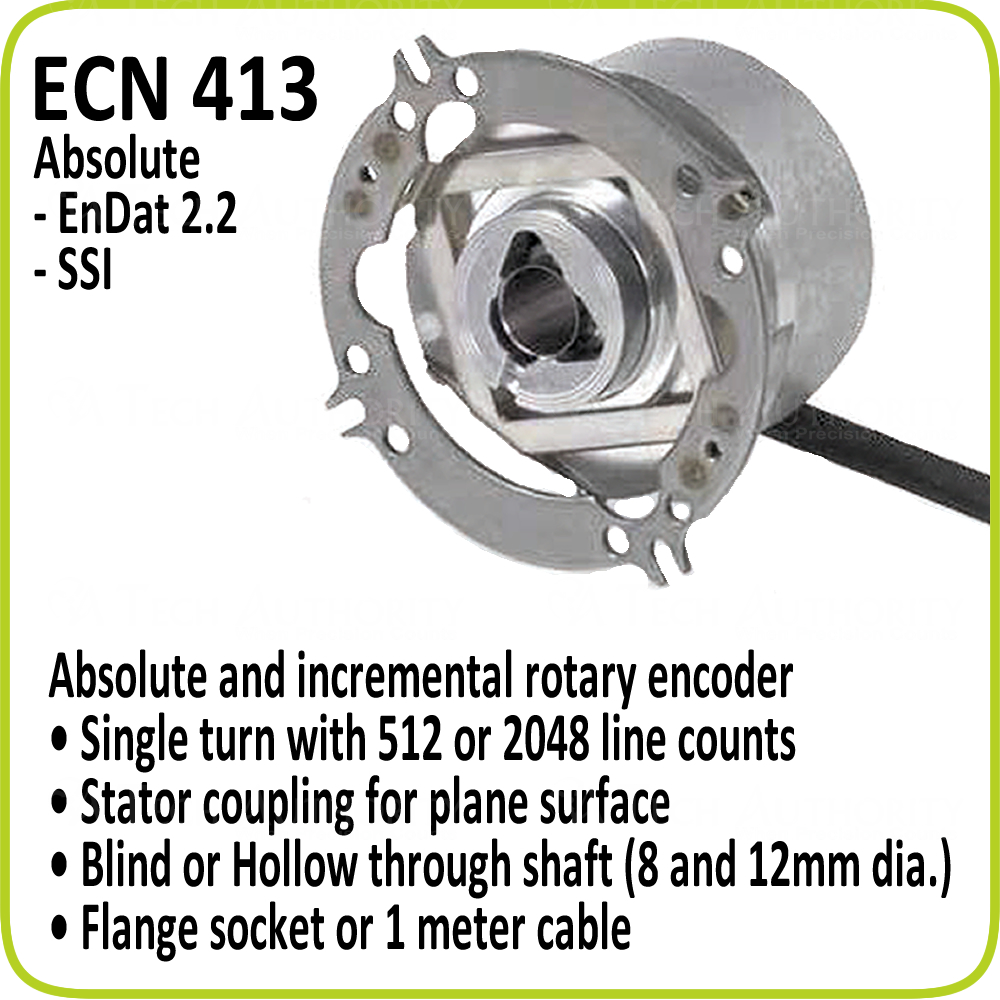

The HEIDENHAIN ECN 413 is a compact absolute singleturn encoder with various signal interfaces available.
- Request A Quote
Description
The HEIDENHAIN ECN 413 absolute encoder offers the following features…
- 13 bit (8192ppr) or SSI (gray) interface
- 512 and 2048 line count options
- EnDat 2.2 interface
- 1Vpp incremental signals
- 8mm or 12mm blind hollow or through shaft
- Mounted stator coupling
- Max. operating temperature up to 100 °C
- Max. shaft speed: varies
- Voltage supply is DC 3.6V to 14V
- Housing diameter ≈ 56mm
- 1 meter cable or 17 pin radial flange socket connector
- IP64 rating
- 512 lines: ±60“; 2048 lines: ±20“
