Brand : HEIDENHAIN

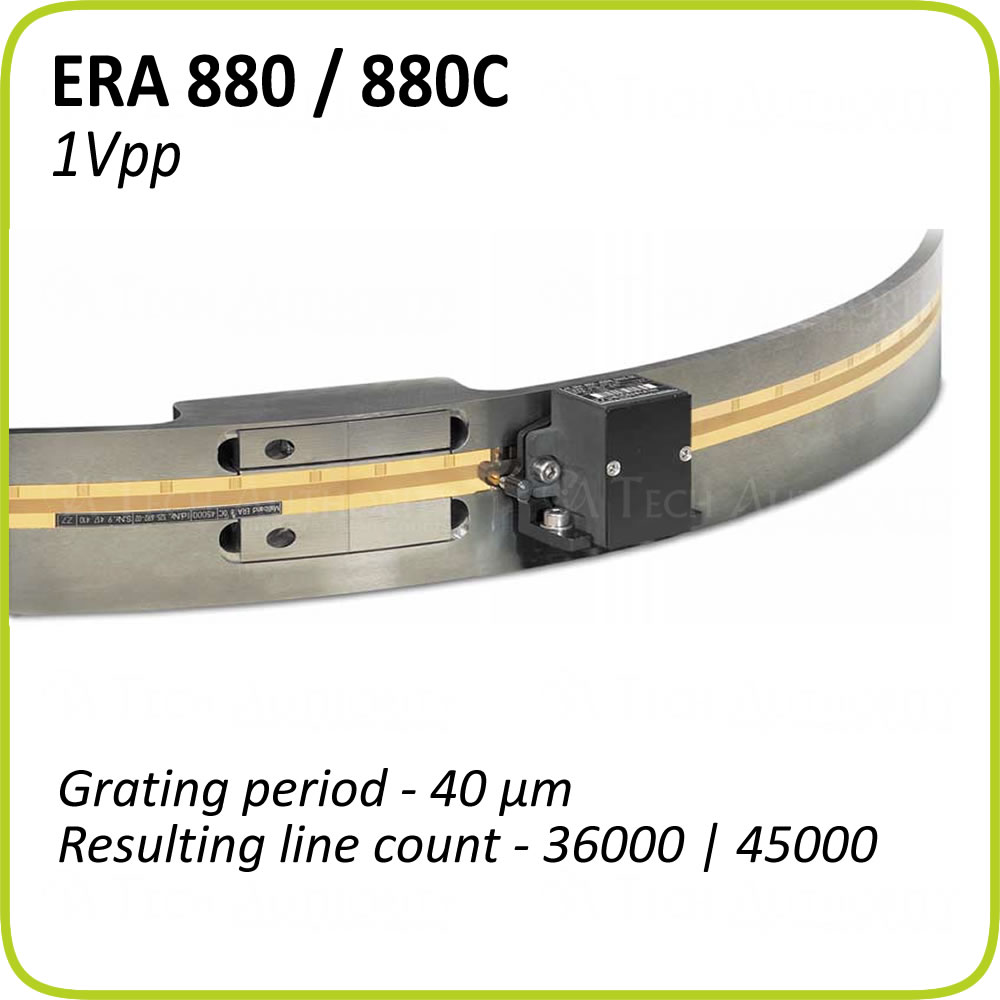

ERA 880 / 880C
-
The HEIDENHAIN ERA 880 tape series exposed angle encoder offered high-accuracies with 1Vpp incremental signals in full-circle or segmental OD versions.
- Request A Quote
Description
The HEIDENHAIN ERA 880 series is designed for outer (OD) mounting, full-circle and segment versions, offering a high-accuracy incremental angle encoder for various OD angle measurements with the following features…
- Steel scale tape for inner diameter mounting
- 40µm grading period
- Accuracy of graduations of ±3.5” to ±3.0”
- Accuracy of scale tape: ±3μm per meter of tape length
- Full-circle and segment versions, including for very large diameters
- 1Vpp incremental output signals
- Cable, 3 meters with M23 coupling
- Mechanical permissible speed of 500rpm
- Operating temperatures from –10 °C to 50°C (thermal coefficient of expansion between 9 · 10–6K–1 and 12 · 10–6K–1)
- IP00 protection rating
- ERA 840 C full-circle version
- ERA 841 C segment version with tensioning elements
- ERA 842 C segment version without tensioning elements
