Brand : HEIDENHAIN

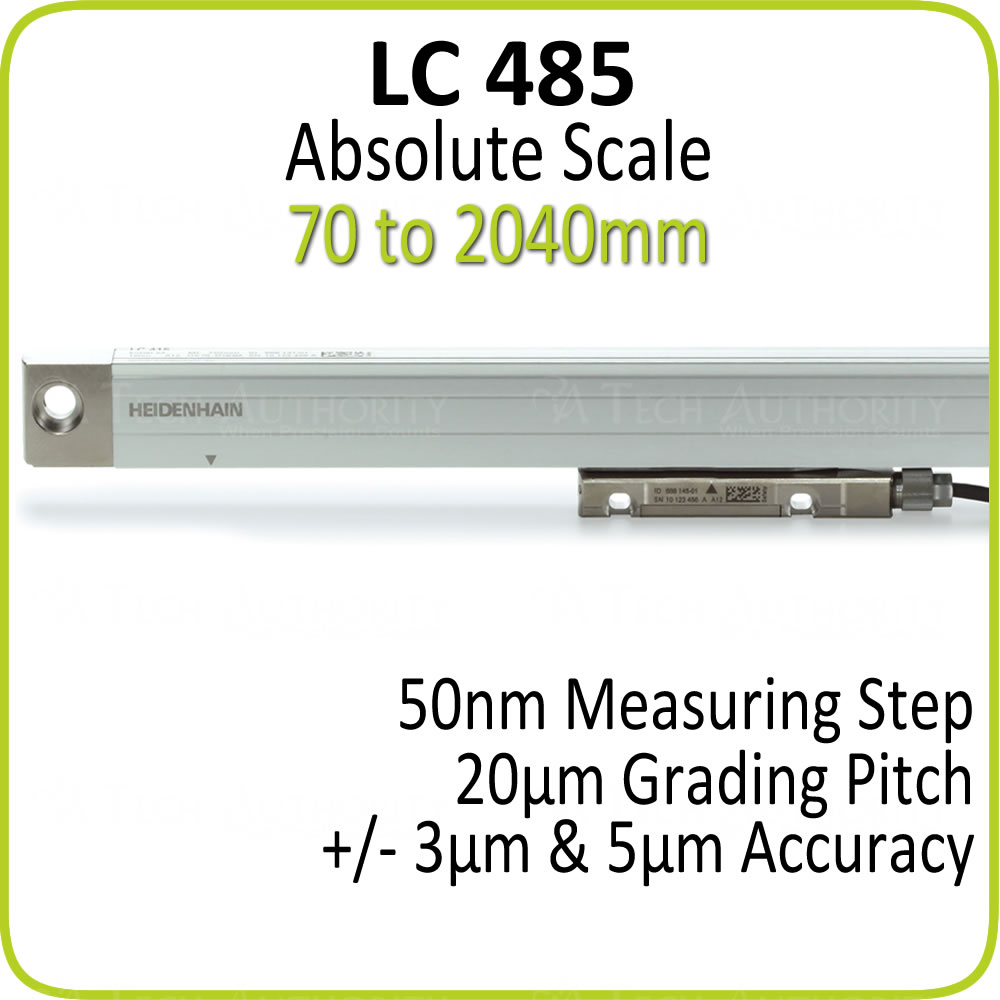

LC 485
-
The HEIDENHAIN LC 485 absolute linear encoders offer measuring steps to 0.1µm (resolution to 0.005µm for limited installation space. High positioning accuracy and traversing speed through single-field scanning.
- Request A Quote
Description
The HEIDENHAIN LC 485 linear encoder provides the absolute position value immediately upon switch-on—without previous movement of the machine axes. The absolute value is transmitted serially to the subsequent electronics over the EnDat interface. The slimline housing profile makes the LC 485 particularly suited to applications with restricted mounting space.
- DIADUR glass scale
- Absolute and incremental tracks
- EnDat 2.2 (synchronous serial) data interface
- Resolution of 0.005µm
- 1Vpp incremental output signals
- 20µm signal period
- ± 3um and ± 5um accuracy grades
- 5nanometer measurement step
- Max traversing speed of 180 m/min
- Operating temperature from 0 to 50 °C
- Measuring lengths from 70mm to 2040mm
