Brand : HEIDENHAIN
LF 185 / 185C
-

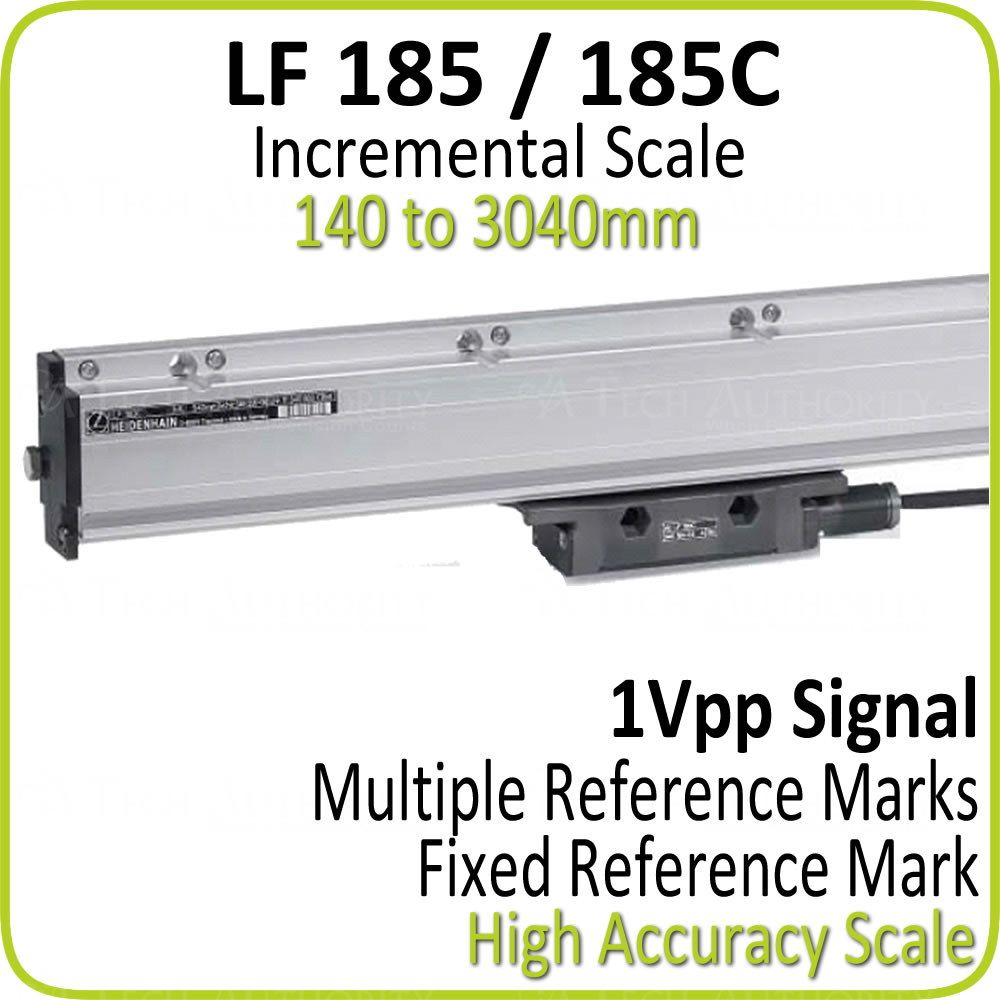

The HEIDENHAIN LF 185 / LF 185C series incremental linear encoder with full-size housing, ultra-small signal period, 1Vpp signal and measuring lengths up to 3040mm.
- Request A Quote
Description
The HEIDENHAIN LF 185 / LF 185C single piece scale offers the following features...
- ±2µm and ±3µm accuracies
- 1Vpp incremental signal
- Reference marks either selectable every 50mm or Distance-coded
- 4µm signal period
- 0.1µm measuring step
- Cutoff frequency (-3 dB) of 250.00 kHz
- Power supply: 5V+5%-10%
- IP53 protection or IP64 with compressed air from DA 400
- Operating temperature from 0/+50 °C
- Cable separate up to 150 meters
- Coefficient of linear thermal expansion is 10 · 10–6 K–1
