Brand : HEIDENHAIN
LF 485 / 485C
-

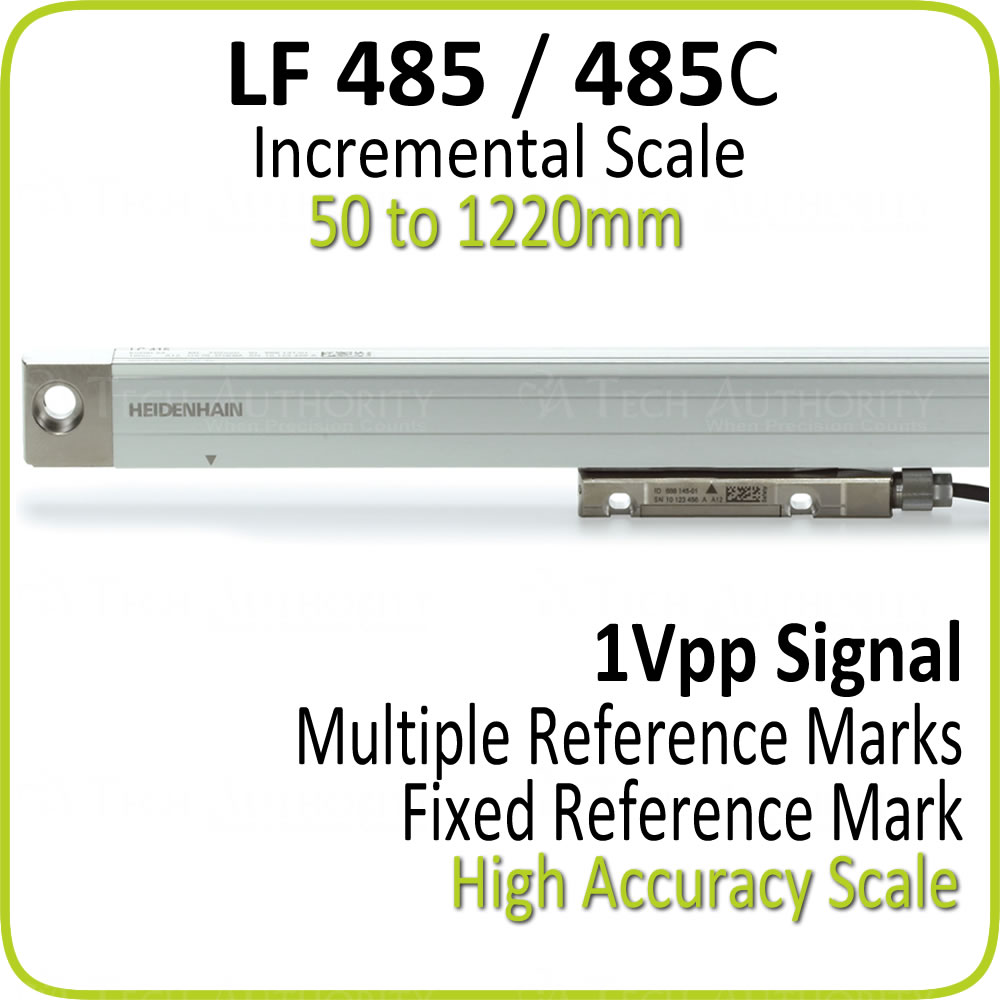

The HEIDENHAIN LF 485 / LF 485C series incremental linear encoder with slim-line housing, ultra-small signal period, 1Vpp signal and measuring lengths from 50mm to 1220mm.
- Request A Quote
Description
The HEIDENHAIN LF 485 / LF 485C single piece linear scale with SUPRADUR phase grating on steel offer the following features...
- ±3µm and ±5µm accuracies
- 1Vpp incremental signal
- Reference marks either selectable every 50mm or Distance-coded
- 4µm signal period
- Measuring step to 0.1µm
- Cutoff frequency (-3 dB) of 250.00 kHz
- Power supply: 5V+5%-10%
- IP53 protection or IP64 with compressed air from DA 400
- Operating temperature from 0/+50 °C
- Cable separate, up 150 meters
- Coefficient of linear thermal expansion is 10 · 10–6 K–1
