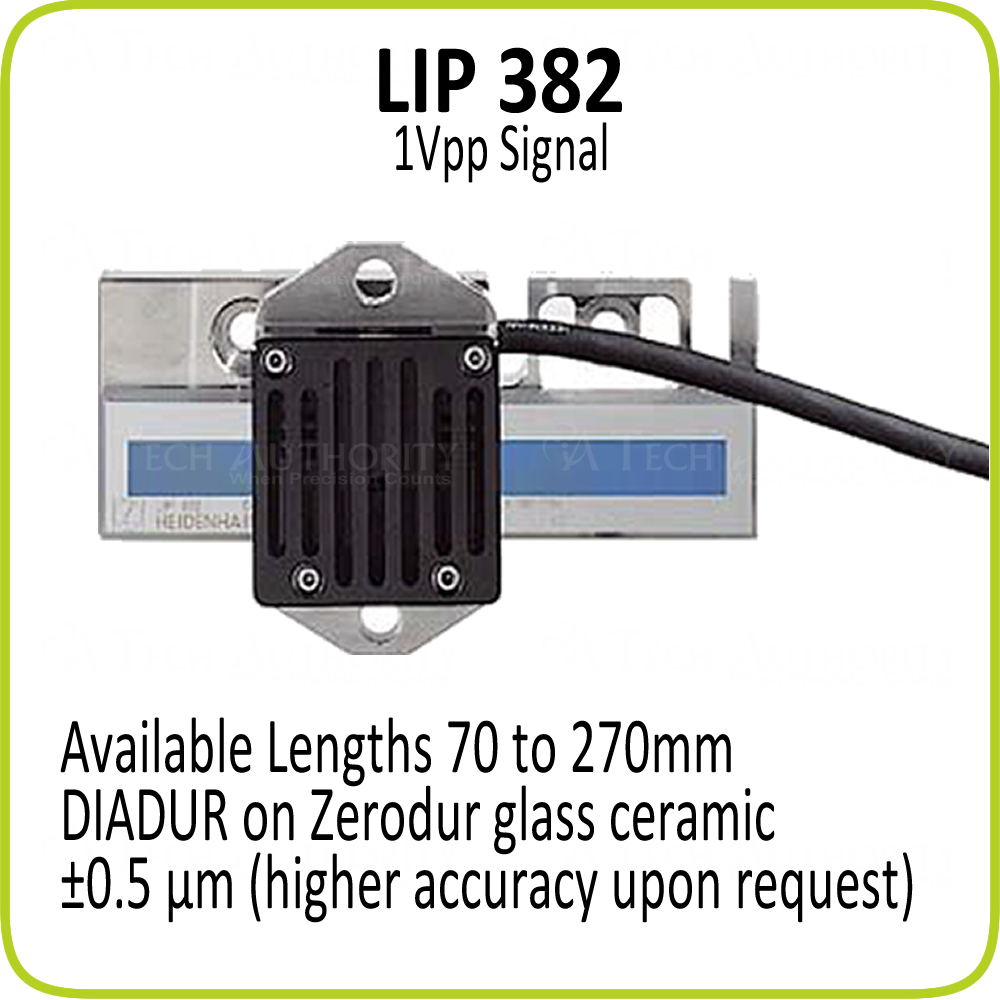

LIP 382


HEIDENHAIN LIP 300 series is available in accuracy grades from ± 1µm to ± 0.1µm. Through the choice of scale material it is possible to use a measuring standard whose thermal behavior is comparable to that of the measured objects. A grating period of 4µm produces an output signal period of 2µm. This results in a measuring step of only 0.5µm even without interpolation. The high uniformity of the scanning signals permits measuring steps as fine as one nanometer.

Measuring standard - TITANID phase grating on Zerodur
Signal period - 0.004um
Accuracy grades - ± 0.1µm over 70mm measuring length
Recommended measuring steps - 0.001µm
Measuring lengths - 70mm to 270mm
Reference mark - No

Incremental linear encoder with very high accuracy

  • For high-accuracy linear axes up to 270 mm long
  • Very small measuring step (
  • Very high repeatability
  • Measuring standard on a carrier plate
  • Interface: TTL (LIP 372) and 1Vpp (LIP 382)
