This product has been discontinued by the manufacturer however parts may still be available
Click HERE to view the replacement item
Please call 909-614-4522 to speak with one of our trained product specialists
-
Brand : HEIDENHAIN

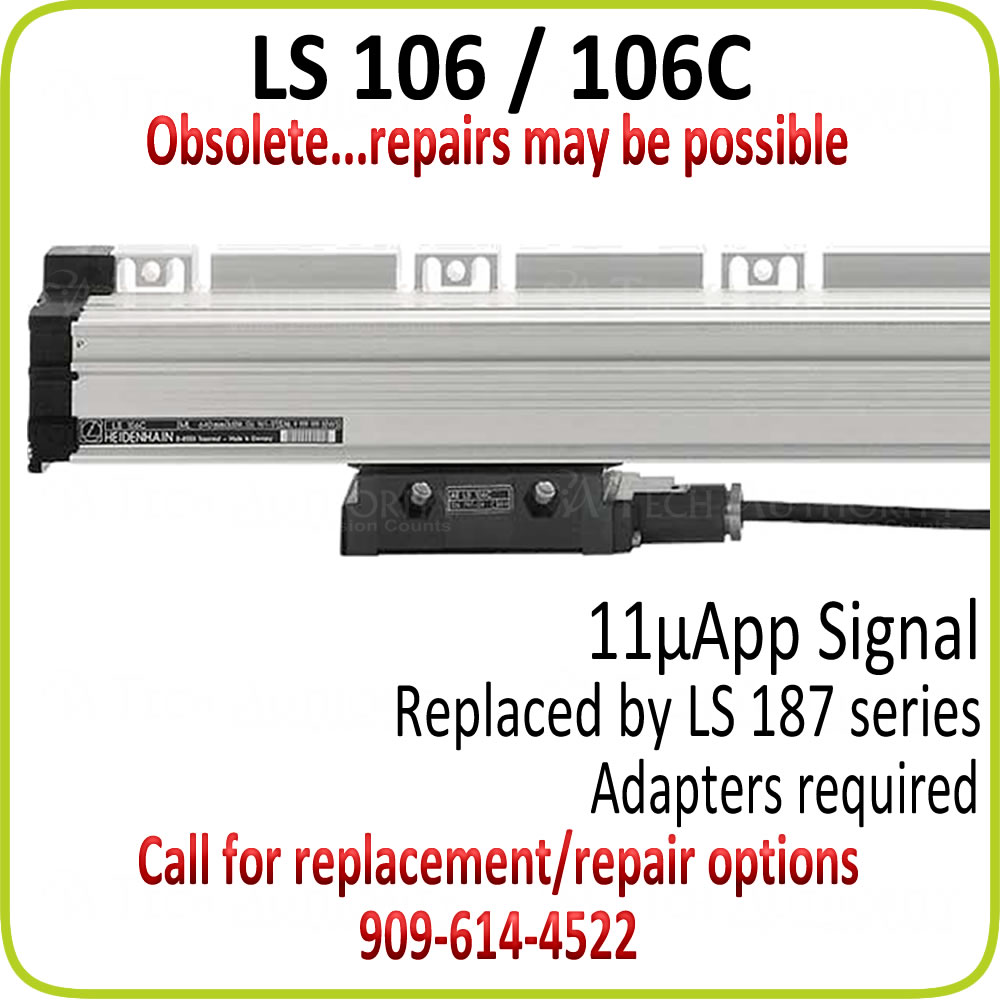

LS 106 / 106C
-
The HEIDENHAIN LS 106 and 106c sealed linear encoders were desired for machine tools and offer measuring steps of 1µm and 0.5µm with 11uApp signal output.
- Request A Quote
Description
The HEIDENHAIN LS 100 Series for NC machines with defined thermal behavior and a high vibration rating. The LS seriesa serve as standard encoders for use on machine tools, and also for measuring and inspection tasks.
- DIADUR glass scale
- 11µApp output signals
- 20µm signal period
- ±5µm and ± 3µm accuracy grades
- 1µm and 0.5µm recommended measuring steps
- 240mm to 3040mm measuring lengths
- One, two, or distance-coded reference marks
