Brand : HEIDENHAIN

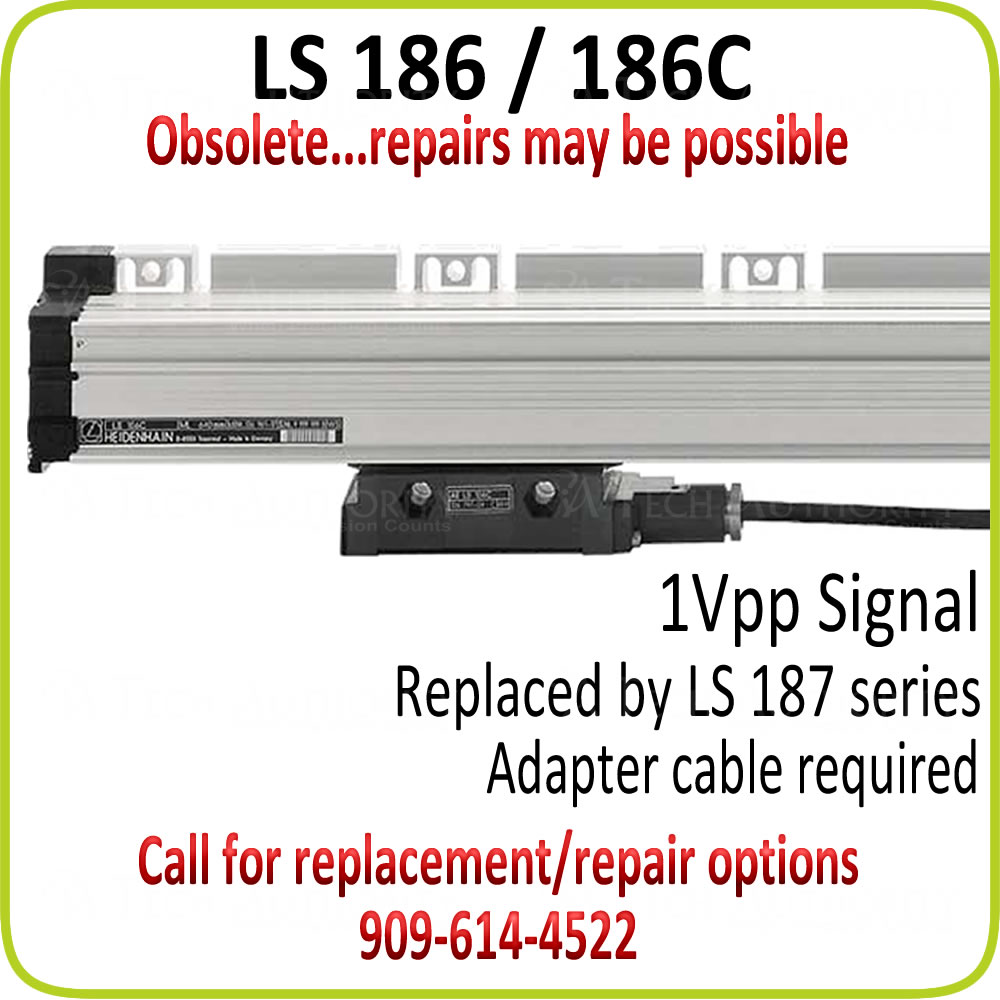

LS 186 / 186C
-
The HEIDENHAIN LS 186 / 186C series incremental linear encoders are designed for CNC machine tools featuring full-sized scale housing, high vibration rating for measurements to 0.5µm. Call for possible repair options.
- Request A Quote
Description
The HEIDENHAIN LS 186 / 186C has defined thermal behavior and serves as a standard linear scale uses on machine tools and measuring applications worldwide. The LS 186 / 186C offers the following features...
- DIDUAR glass graduation
- ±5µm or ±3µm accuracy grades
- 1Vpp incremental signals
- 20µm grading period/signal period
- Measuring lengths from 140mm to 3040mm
- Distance Coded reference marks (every 50mm) or single center reference mark
- Cutoff frequency -3dB = 160 kHz
- Max. cable length is 150 meters
- IP 53 or IP64 with DA 400 air purge kit
Call for possible repair options.
