This product has been discontinued by the manufacturer however parts may still be available
Click HERE to view the replacement item
Please call 909-614-4522 to speak with one of our trained product specialists
-
Brand : HEIDENHAIN

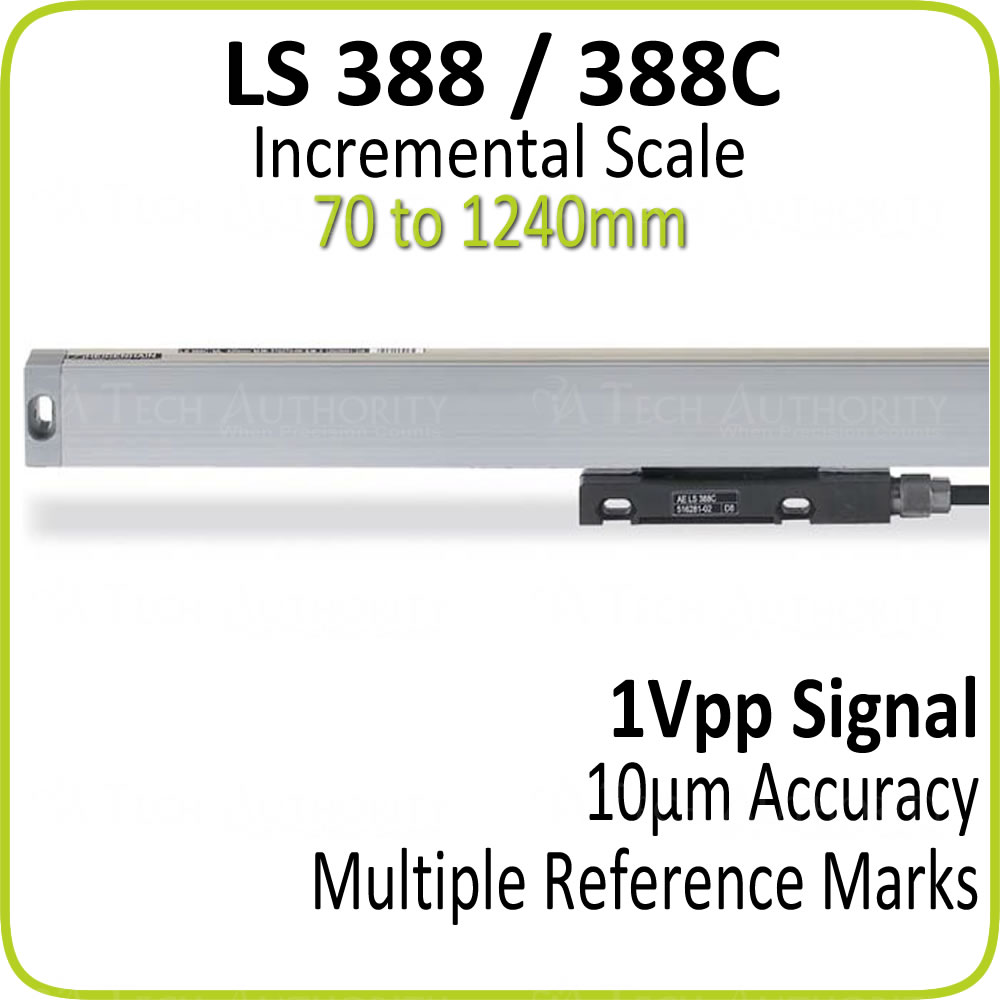

LS 388 / 388C
-
The HEIDENHAIN LS 388C series incremental linear encoders are primarily designed for manual machine tools with limited installation space, in conjunction of a digital readout.
- Request A Quote
Description
The HEIDENHAIN LS 388C incremental linear scales are used for simple, but accurate positioning tasks on machine tools and measurement applications. The LS 338C offers the following features...
- DIDUAR glass graduation (20µm grating)
- ±10µm accuracy grades
- 1Vpp incremental signals
- 20µm signal period
- Measuring lengths from 70mm to 2040mm
- Distance Coded reference marks (every 50mm) or single center reference mark
- Max. cable length is 150 meters
- IP 53 rating
