Brand : HEIDENHAIN

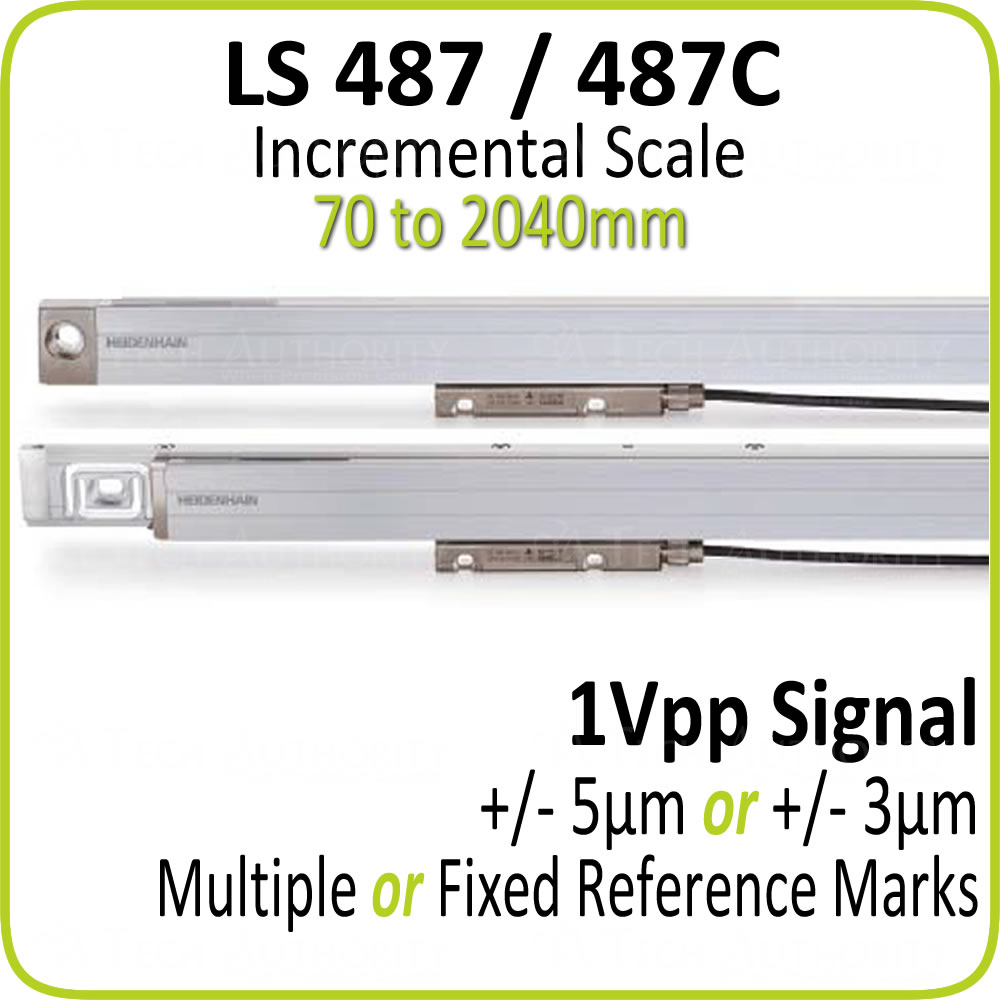

LS 487 / 487C
-
The HEIDENHAIN LS 487 / LS 487c sealed slimline linear encoders with measuring steps of 1µm and 0.5µm and a 1Vpp signal output provide repeatable accuracies of ± 5µm or ± 3µm. Manufactured with HEIDENHAIN's proven DIADUR 20µm glass graduation.
- Request A Quote
Description
The HEIDENHAIN LS 487 / LS 487c series for NC machine tools, along with high accuracy manual measuring and inspection tasks with the following features.
- Measuring standard - DIADUR glass scale
- Output signals - 1Vpp
- Signal period 20um
- Accuracy grades - ± 5µm, ± 3µm (ML <= 1240 mm)
- Recommended measuring steps - 1µm, 0,5µm
- Measuring lengths - 70mm to 2040mm
- Selectable Distance Coded reference marks (every 50mm) or center reference mark
- Cutoff frequency -3dB- = 160 kHz Electrical connection
- Operating temperature- 0 to 50 °C
