Brand : HEIDENHAIN

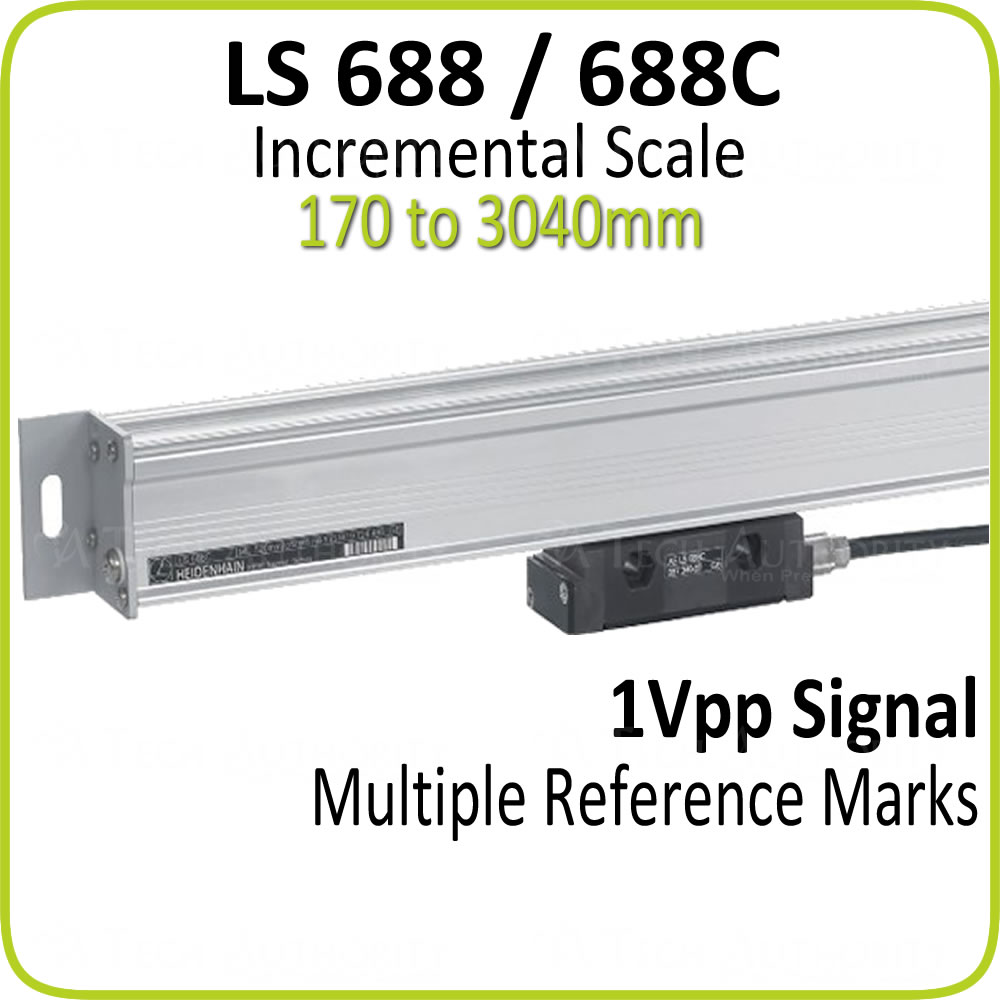

LS 688 / 688C
-
The HEIDENHAIN LS 688C sealed linear encoder is suited for manual machines such as mills and lathes, offering a strong 1Vpp output signal.
- Request A Quote
Description
The HEIDENHAIN LS 688C linear scale is designed for easy mounting and reliable performance for measuring and inspection tasks up to three meters.
- Measuring standard: DIADUR glass scale
- Output signals: 5v 1Vpp
- Signal period: 20µm
- Accuracy grade: ±10µm per meter
- Recommended measuring step: 10µm
- Measuring lengths: 170mm to 3040mm
- Reference mark: Distance-coded (every 50mm)
