Brand : HEIDENHAIN

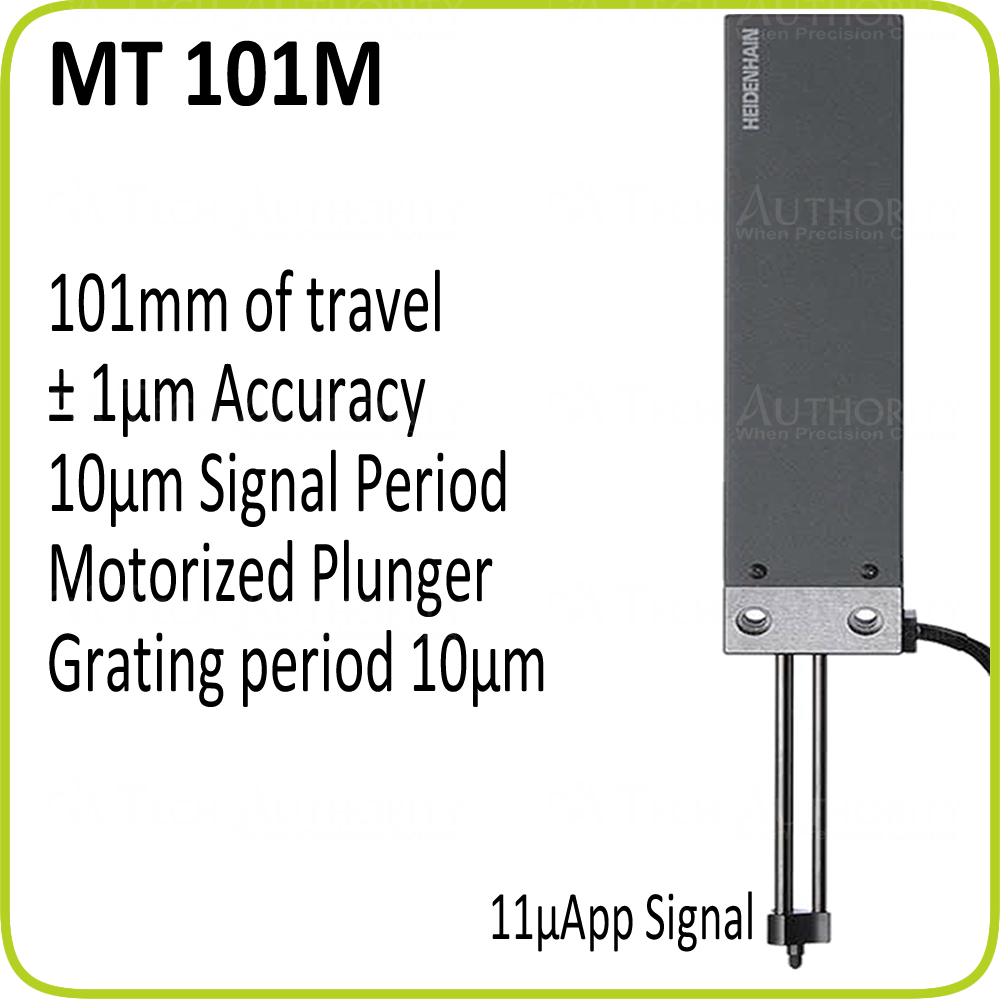

MT 101M
-
The HEIDENHAIN METRO MT101M series length gauges are designed for measuring stations and multi-gauging fixtures with a motorized ball-bearing plunger reading DIADUR 10µm grating period glass.
- Request A Quote
Description
The HEIDENHAIN MT101M motorized length gauge offers the following features…
- 100mm plunger travel
- 1µm accuracy
- 10µm signal period
- Single reference mark
- ≥ 2N radial force
- Ball-bearing-guided and zero-backlash plunger
- Operating temperature: 10°C to 40°C
- 11 µApp signal
- Protection rating of up to IP67
- 1.5 meter cable with either DB15 or M23 9 pin connector
- Used with the SG101 switch box to raise and lower the plunger
