Brand : HEIDENHAIN

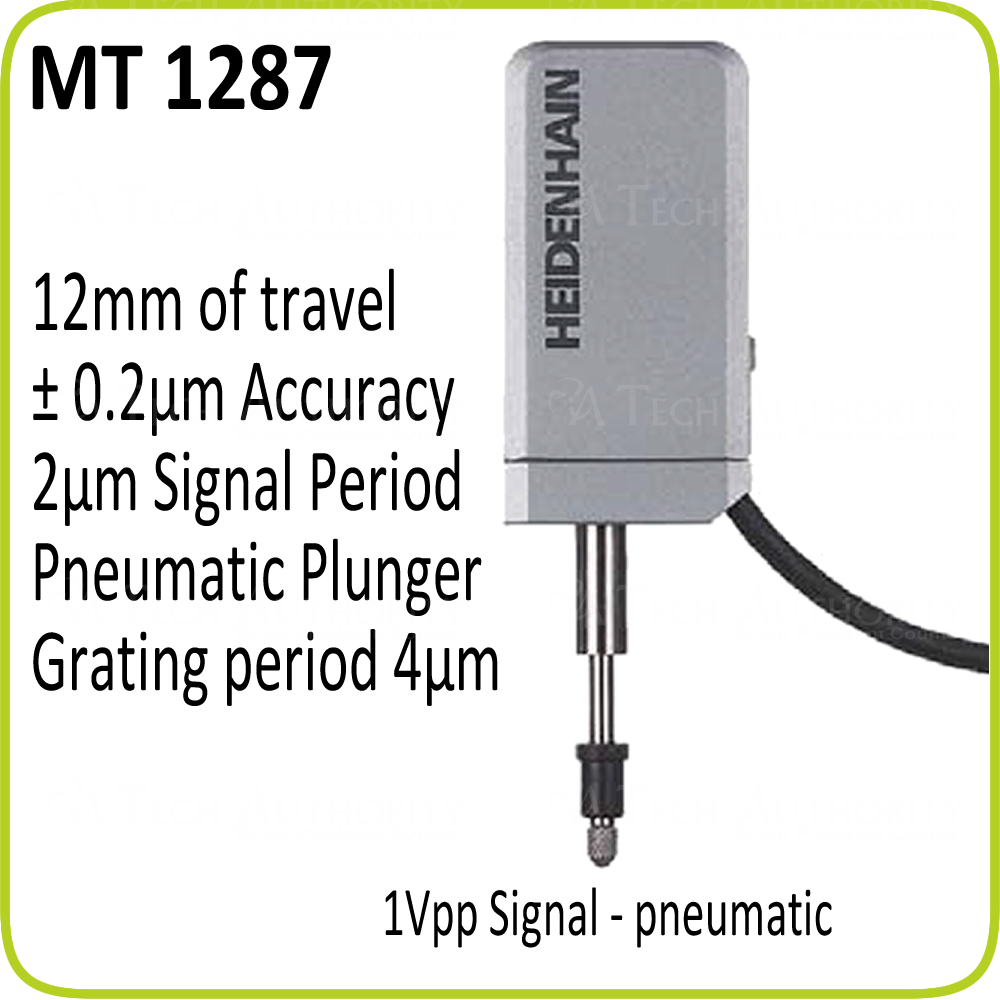

MT 1287
-
The HEIDENHAIN METRO MT1287 series length gauges are designed for measuring stations and multi-gauging fixtures with DIADUR 4µm grating period glass.
- Request A Quote
Description
The HEIDENHAIN MT1287 length gauge offers the following features…
- 12mm plunger travel
- ±0.2µm accuracy
- 2µm signal period
- Single reference mark
- Plunger actuated by pneumatic retraction
- ≥ 0.8N radial force
- Operating temperature: 10°C to 40°C
- 1Vpp signal
- Protection rating of up to IP50
- 1.5 meter cable with either DB15 or M23 9 pin connector
