Brand : HEIDENHAIN

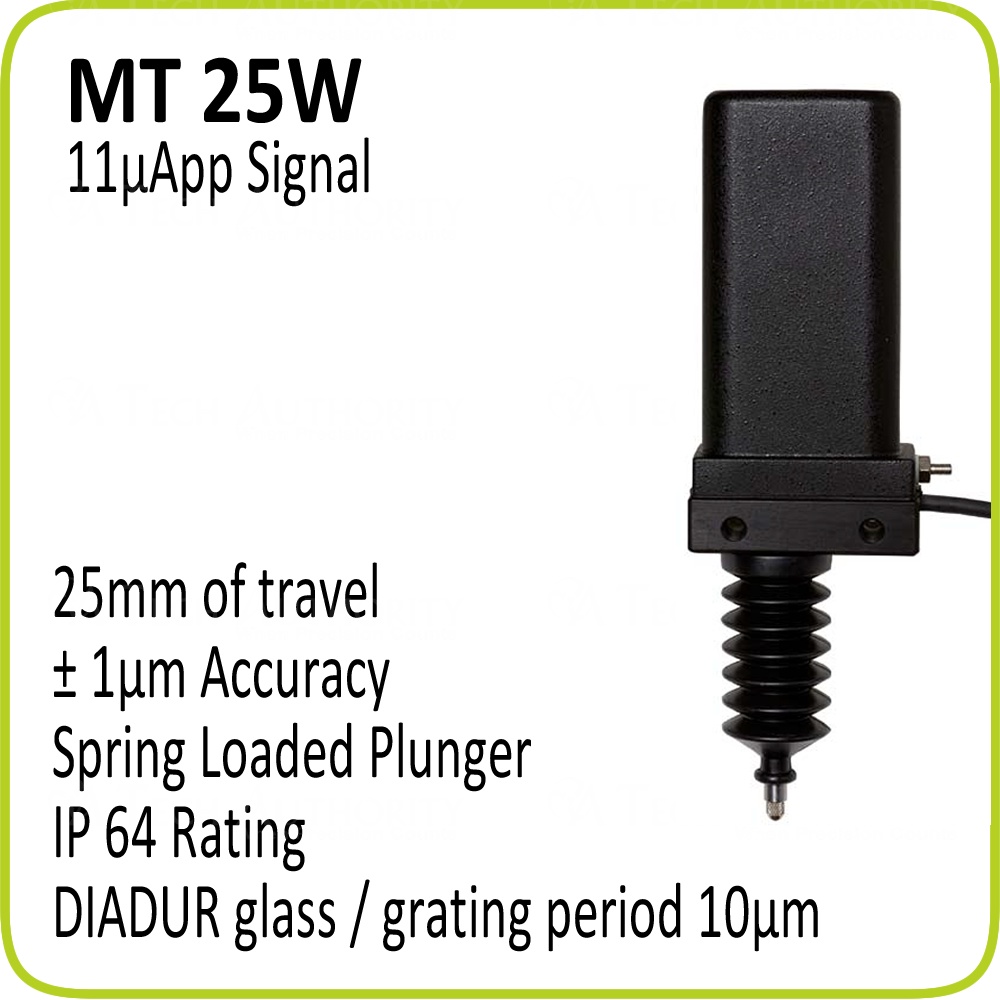

MT 25W (Increased IP Rating)
-
The HEIDENHAIN METRO MT 25W length gauge with plunger actuation by cable or contact with an increased resistance and protection (IP64) from contamination.
- Request A Quote
Description
The HEIDENHAIN MT 25W length gauge is designed to be water resistant ideal for precision measuring stations and testing equipment in a harsh environment.
- 25mm plunger travel
- ±1µm accuracy
- 10µm signal period
- Measuring Steps 0.5µm to 1µm
- Single reference mark located 5.5mm from upper stop
- Plunger actuated by cable or contact
- Operating temperature: 10°C to 40°C
- 11µApp signal
- Protection rating of up to IP64
- 1.5 meter cable with a M23 12 pin connector
