Brand : HEIDENHAIN

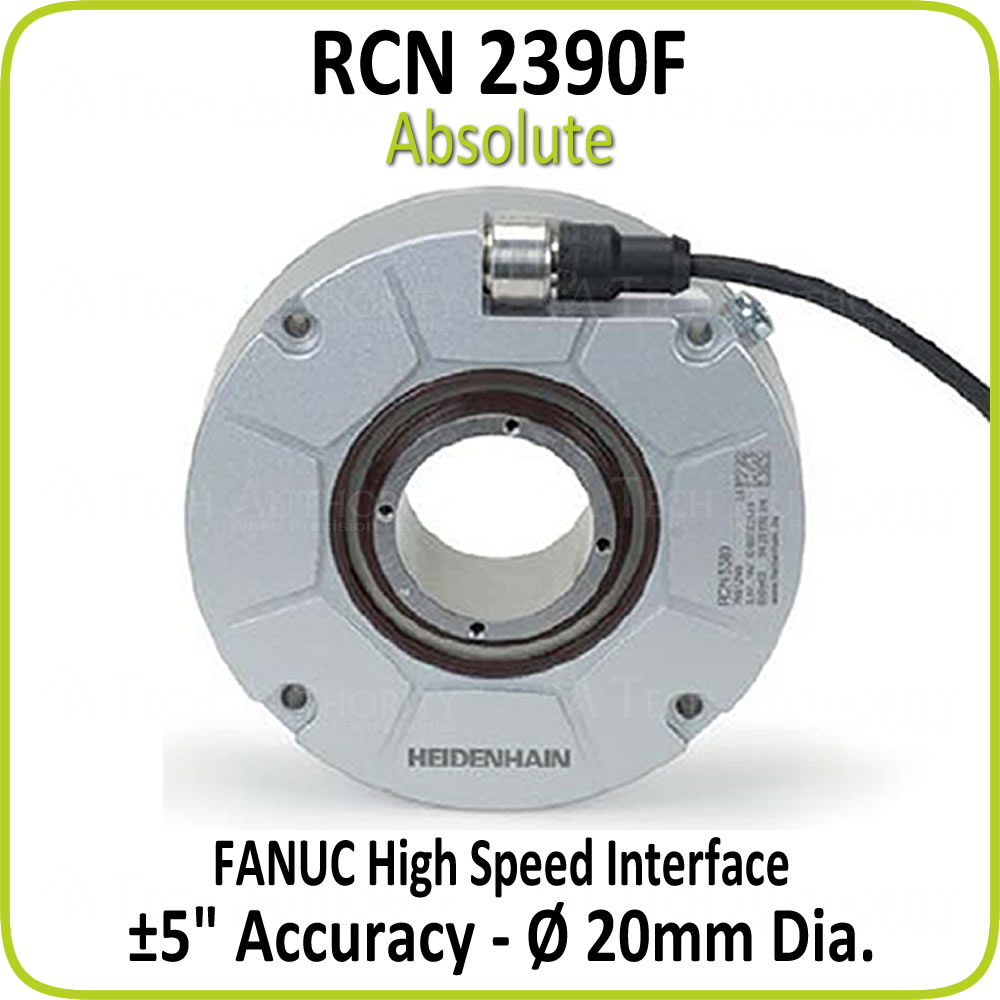

RCN 2390F (FANUC Interface)
-
HEIDENHAIN RCN 2390F series absolute angle encoder with a 20mm through hole shaft, FANUC interface
- Request A Quote
Description
HEIDENHAIN RCN 2390F absolute angle encoder with integral bearing, FANUC interface and integrated stator coupling
- System accuracy: ±5''
- Data interface: FANUC
- Positions per revolution: 67 108 864 (26 bits)
- Line count: 16384
- Cutoff frequency (-3 dB): 400.00 kHz
- Power supply: 3.6 V ... 14 V
- Shaft: Hollow shaft, diameter 20mm
- Degree of protection: IP64 (EN60529)
- Operating temperature: 0/+60 °C
- Electrical connection: Flange socket, Ultra-Lock, male, 12-pin
