Brand : HEIDENHAIN
RCN 5581
-

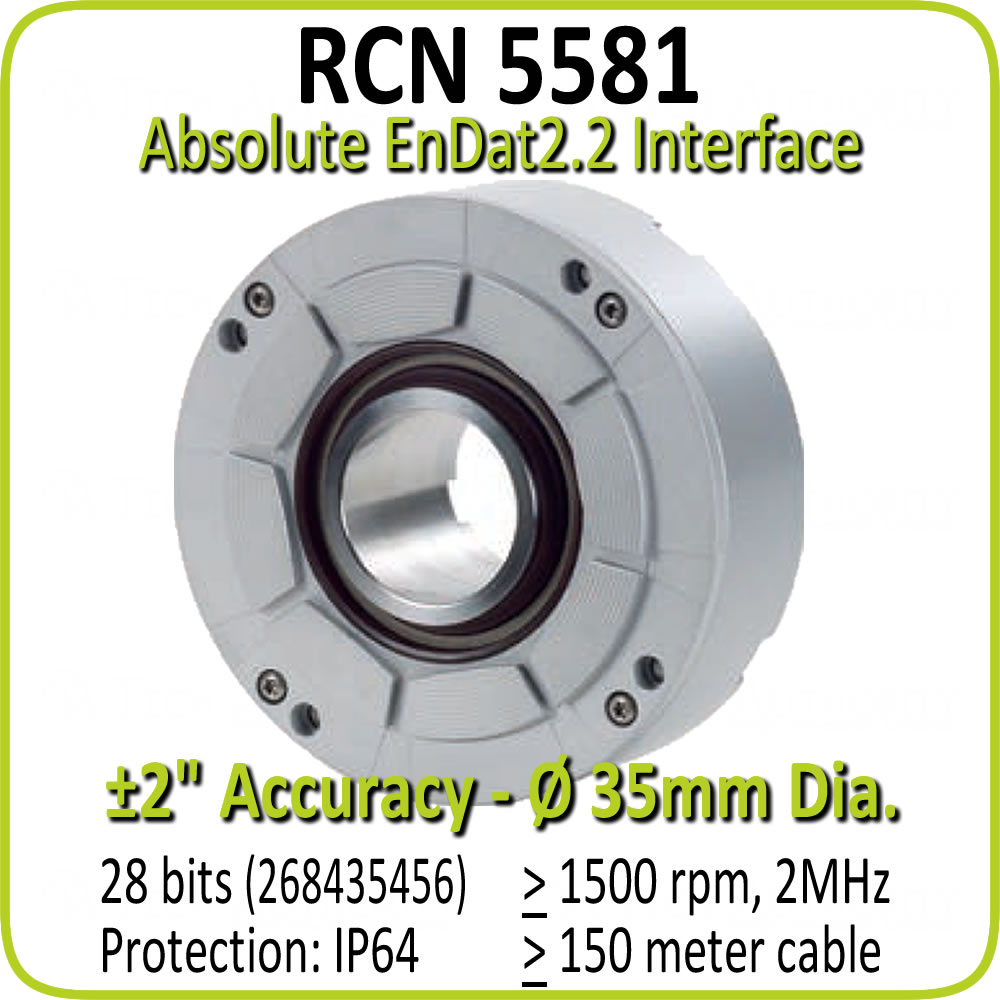

HEIDENHAIN RCN 5581 series absolute angle encoder with a 35mm through hole shaft, ±2" accuracy and optimized scanning
- Request A Quote
Description
HEIDENHAIN RCN 5581 absolute angle encoder (singleturn) with integral bearing and integrated stator coupling
- System accuracy: ± 2.0''
- Data interface: EnDat02
- Positions per revolution: 268435456
- Line count: 16384
- Output signal: ~1Vpp
- Cutoff frequency (-3 dB): 400.00 kHz
- Power supply: 3.6 V ... 14 V
- Shaft: Hollow shaft, diameter 35mm
- Degree of protection: IP64 (EN60529)
- Operating temperature: 0/+60 °C
- Electrical connection: Flange socket, Ultra-Lock, male, 12-pin
