Brand : HEIDENHAIN

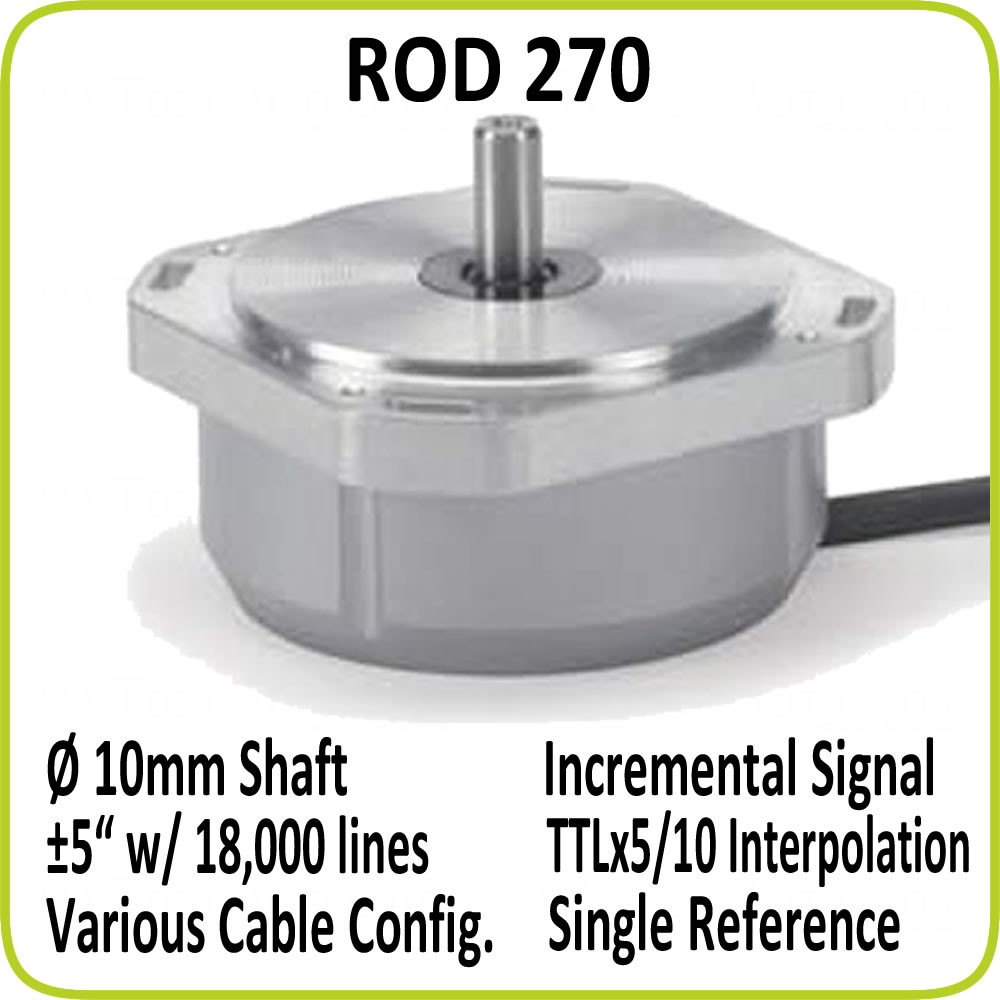

ROD 270
-
Compact incremental angle encoder with integral bearing for separate shaft coupling for measuring steps to 0.001° with 5v TTL Quadrature Output and integrated 5x interpolation
- Request A Quote
Description
With solid shaft: rugged design, typical applications include rotary tables, tilting tables, positioning spindles and synchronization monitoring. For measuring steps to 0.001° Accuracy/Line count ± 7`/9000 ± 6`/10000 ± 5`/18000 Recommended measuring step - 0.001° Incremental signals - 5v TTL Quadrature Max. scanning frequency - 25kHz Permissible speed - 10000 rpm
