Brand : HEIDENHAIN
ROD 480
-

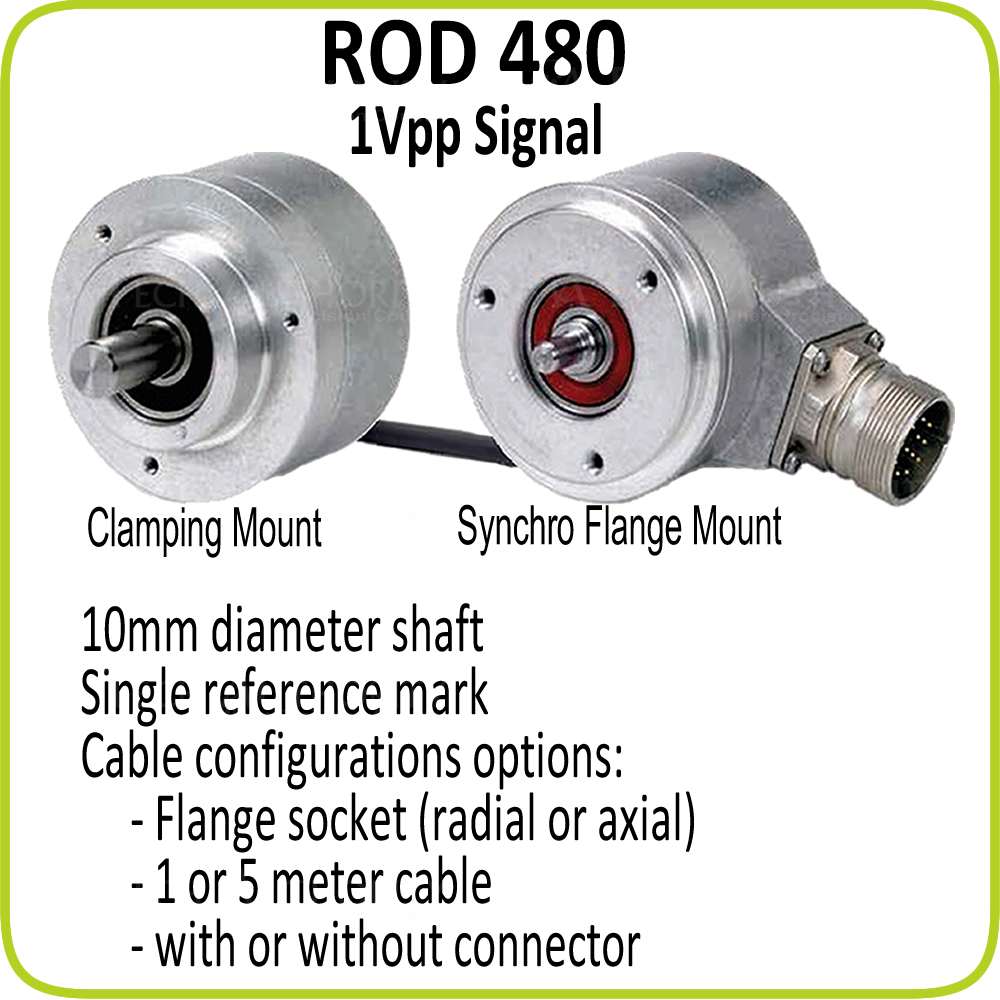

The HEIDENHAIN ROD 480 incremental rotary encoder with integral bearing and 10m diameter shaft. The ROD 480 rotary encoders feature a rugged design and compact dimensions, that are coupled to the drive or the spindle via a separate rotor coupling. Axial motion and misalignment (radial and angular offset) between the encoder shaft and the drive shaft are compensated by the coupling.
- Request A Quote
Description
The HEIDENHAIN ROD 480 incremental rotary encoder offers the following features…
- 10mm diameter shaft
- Line counts from 50 to 5000
- 1Vpp signal
- Single reference mark
- 5V ±0.5V
- 180 KHz cut off frequency
- 16000rpm mechanical permissible speed
- Operating temperature: -40°C to 100°C
- Protection rating IP67
- Cable or flange socket (radial/axial) options
- System accuracy System Accuracy ± 0.5µm (1/20 of grating period)
