Brand : HEIDENHAIN

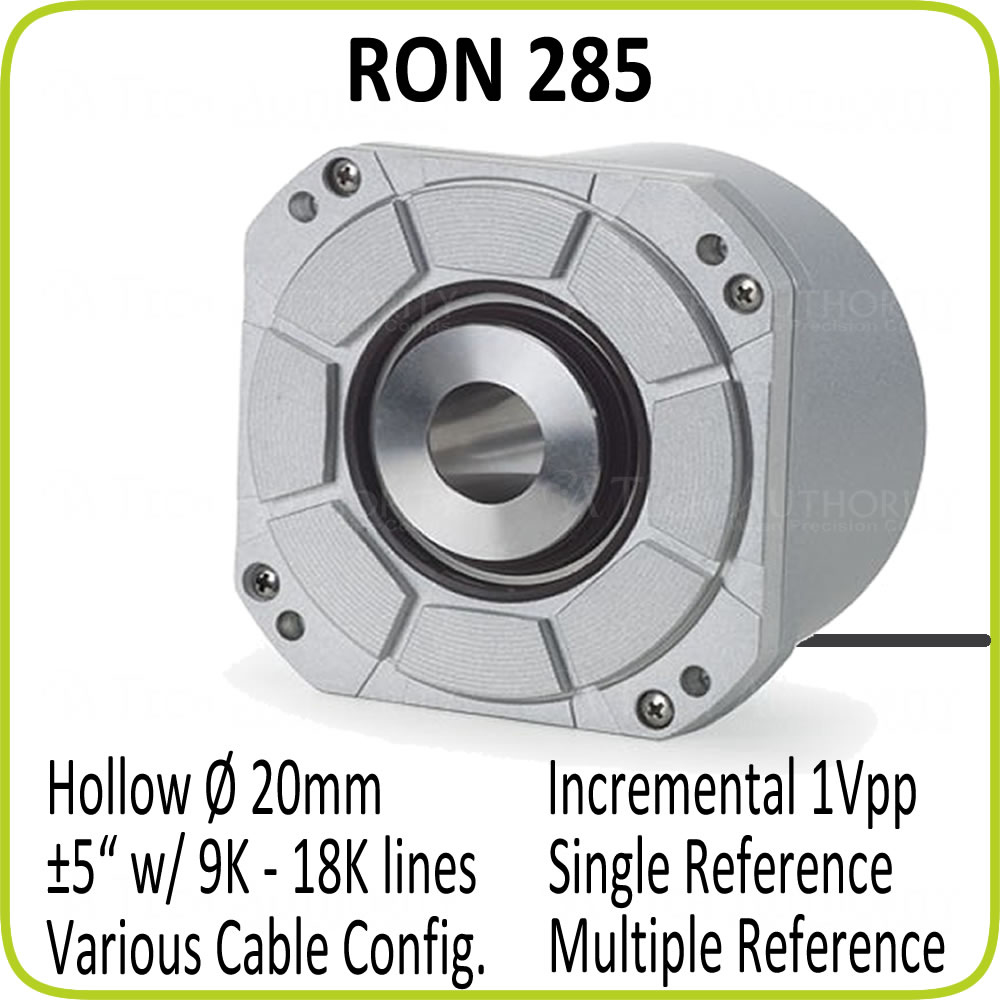

RON 285
-
Compact incremental angle encoder with integral bearing and integrated stator coupling for measuring steps to 0.0005° with 1Vpp Output
- Request A Quote
Description
With hollow through shaft and integrated stator coupling: rugged design, typical applications include rotary tables, tilting tables, positioning spindles and synchronization monitoring. For measuring steps to 0.0005°. Accuracy/Line count - ± 7`/9000 ± 6`/10000 ± 5`/18000 Recommended measuring step for 18 000 lines - 0.0005° Incremental signals - 1 Vpp Permissible speed - 3000 rpm
