TP20

Description

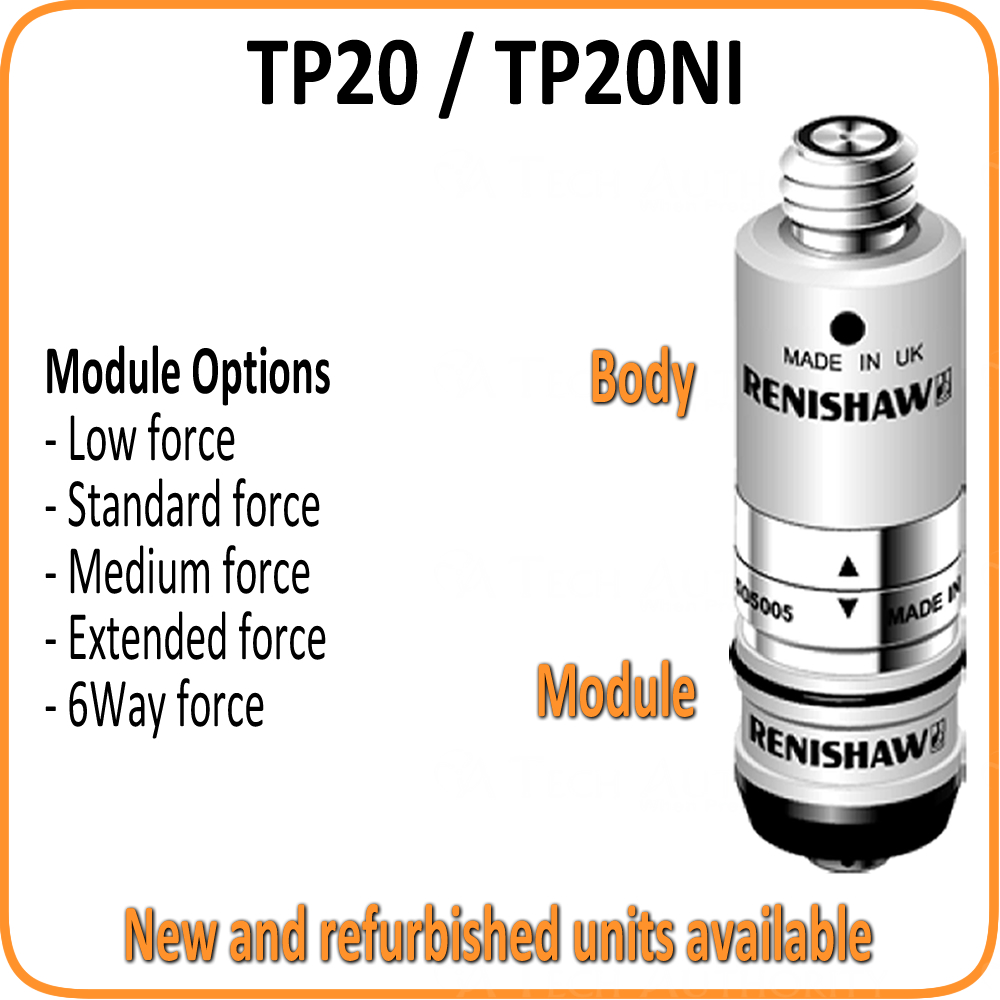

The TP20 probe system is ideal for complex part measurement, where a range of stylus configurations is needed to access all features on the part. Modules offering a range of trigger forces allow the probe performance to be accurately matched to the measurement in hand. A set of probe extensions is also available, as is a 6-way module. The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces. Seven probe module options are available, each with a pre-set trigger force designed to ensure maximum probe performance when using different stylus configurations. The range includes low, standard, medium and extended forces as well as extensions (50mm and 75mm) and a 6-way module.
