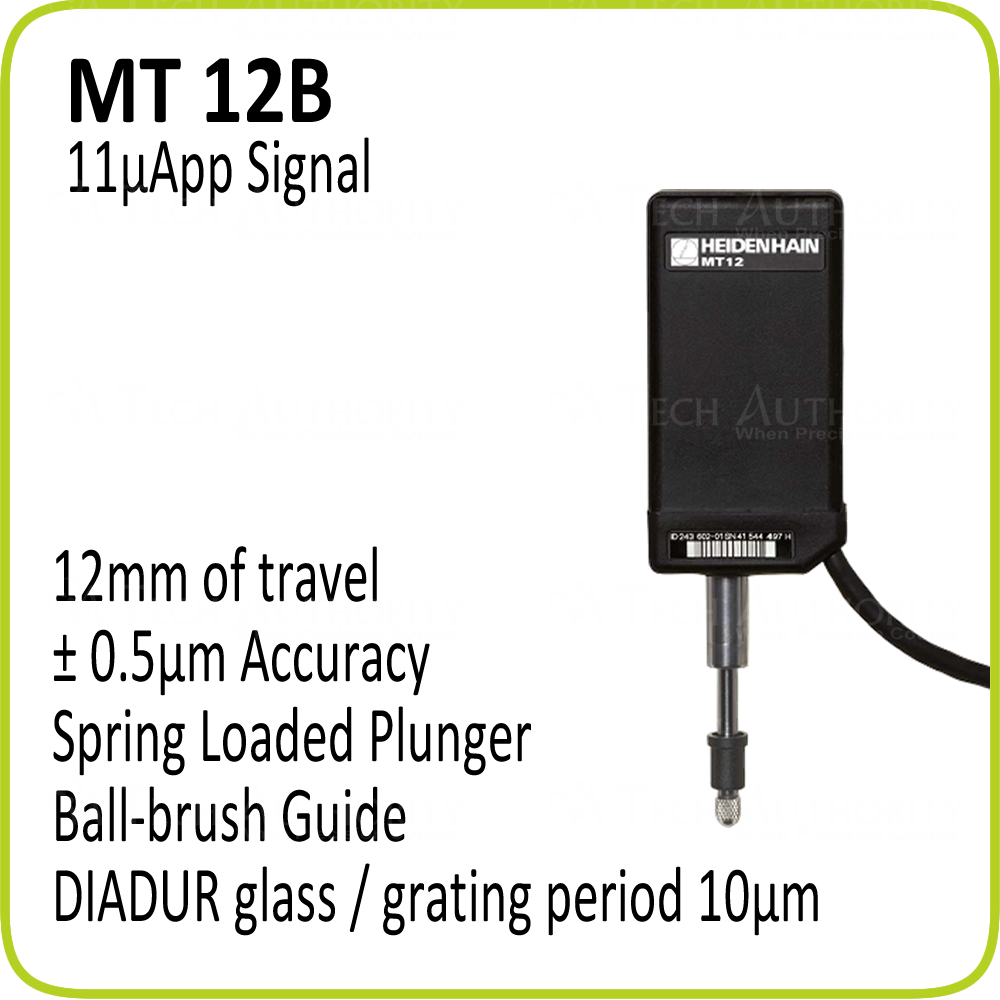

The HEIDENHAIN MT 12B is a rugged length gauge with plunger actuation by cable lifter or contact, ball-brush guides for increased plunger stability.

The HEIDENHAIN MT 12B length gauge is ideal for precision measuring stations and testing equipment, with a ball-brush bearing plunger.

• 12mm plunger travel
• ±0.5µm accuracy
• 10µm signal period
• Measuring Steps 0.5µm to 1µm
• Single reference mark located 5.5mm from upper stop
• Plunger actuated by cable lifter or contact
• Operating temperature: 10°C to 40°C
• 11µApp signal
• Protection rating of up to IP50
• 1.5 meter cable with a M23 12 pin connector
