Renishaw PH1 CMM Probe - Printable
angular-encoders

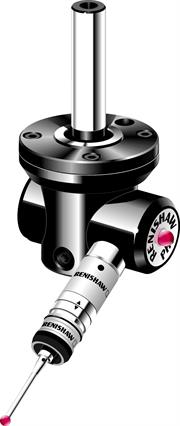

The Renishaw PH1 is a small shank mounted manual probe head for A and B movement, with limited overtravel protection.

The Renishaw PH1 mounts a single touch trigger probe to a shank. A small swivel head, adjustable in both the A and B axes, with limited overtravel protection. The probe is offset from the mounting shank Z axis.  PH1 is a general purpose, swivel-type probe head. Its compact design makes it ideally suited to a CMM where manual orientation of a Renishaw M8 touch-trigger probe is required.


A manual articulating probe head with non-repeatable indexing in the B-axis and ±115° rotation in the A-axis

  • Shank mounted to the CMM
  • Limited overtravel protection
  • M8 thread probe mount that is offset from the mounting shank Z-axis
  • PH1 manual articulating probe head
