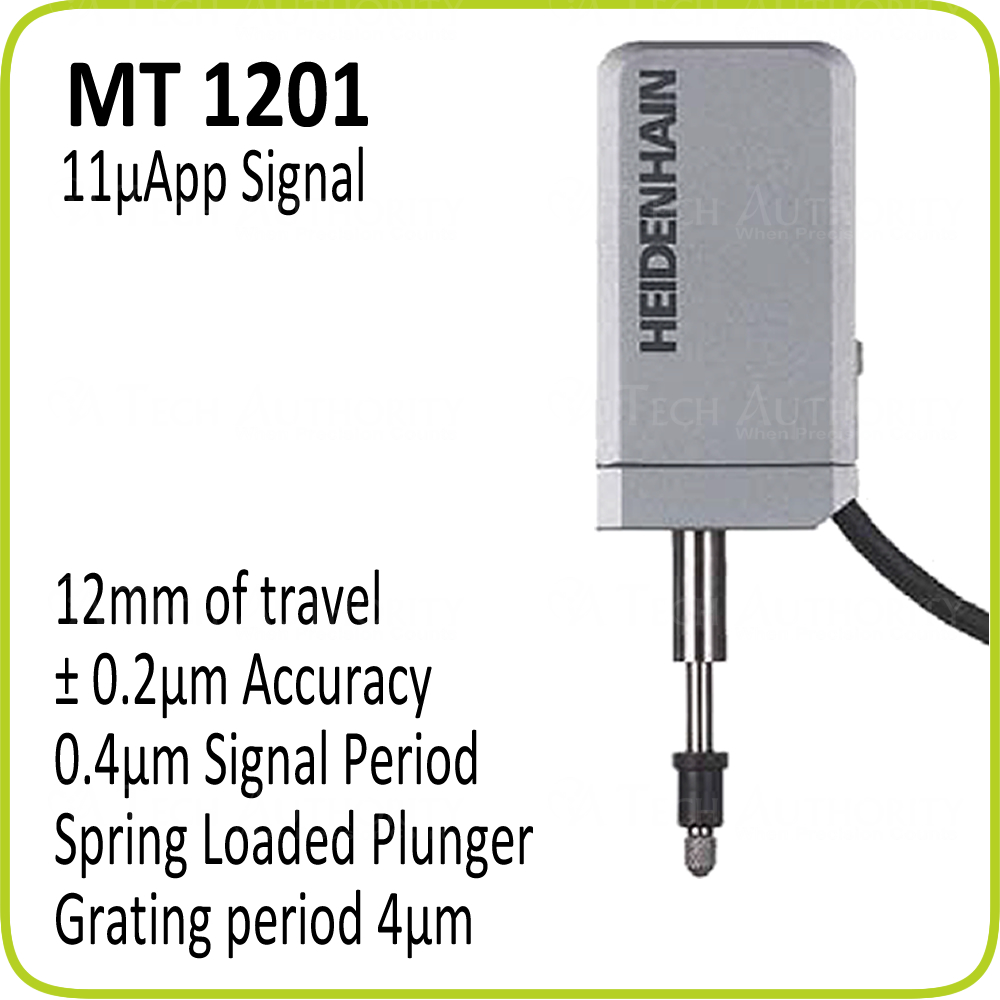

MT 1201 by HEIDENHAIN

Rugged standard version with ball-guided plunger for radial forces up to 0.8 N; Plunger actuation by cable lifter or contact

click here for more images

With their high system accuracy and small signal period, the HEIDENHAIN MT1201 length gauge is ideal for precision measuring stations and testing equipment. They feature ball-brush guided plungers and therfore permit high radial forces.

Rugged standard version with ball-guided plunger for radial forces up to 0.8 N; Plunger actuation by cable lifter or contact. DIADUR phase grating on Zerodur® glass ceramic.

Grating Period 4 µm
System Accuracy ± 0.2 µm
Recommended Measuring Steps 0.5 µm to 0.05 µm
Output signal 11 µApp
Reference Mark Approx. 1.7 mm below upper stop
Measuring Range 12 mm (0.47 in.)
Signal Period 2 µm
