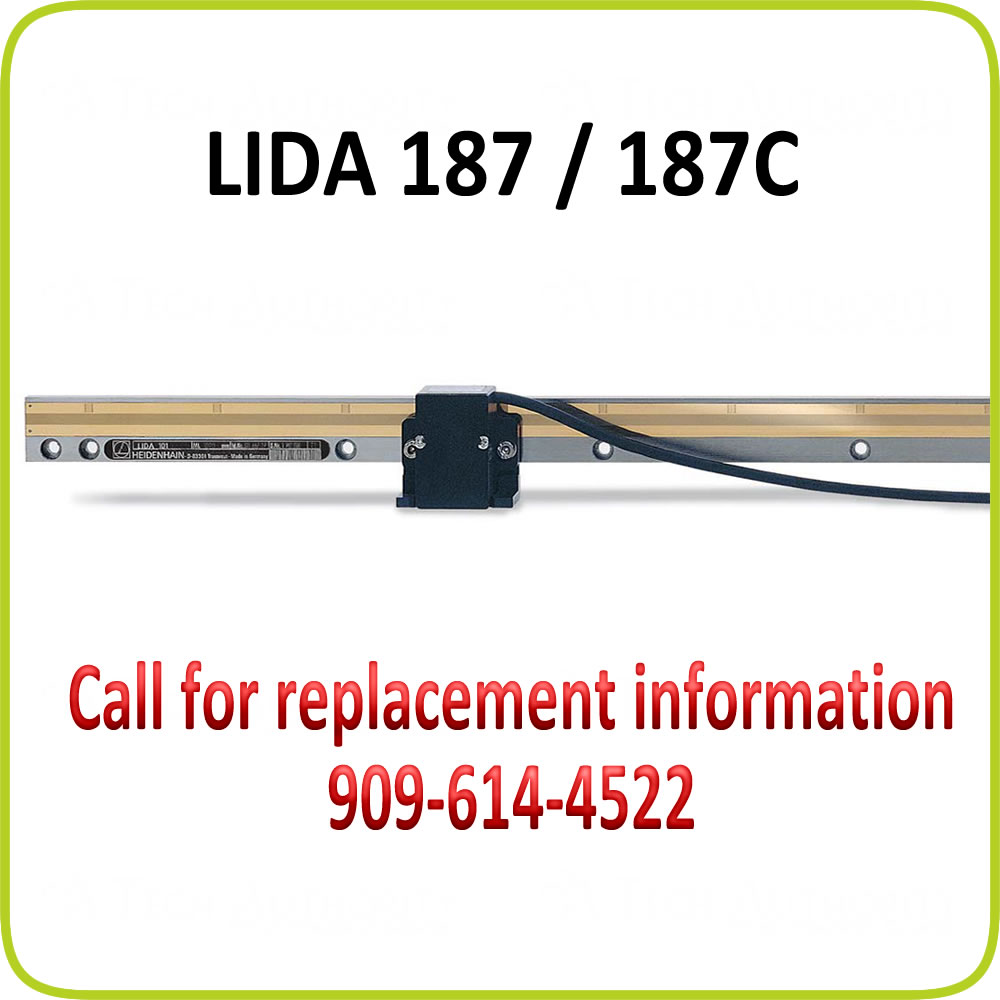

LIDA 187 / 187 C by HEIDENHAIN

Incremental linear encoders for high traversing speeds and medium traverses up to 6m with 1Vpp Output

            click here for more images
The LIDA 187 consists of a one-piece steel tape. In this case, however, it is guided in a scale-tape carrier and is rigidly connected at its center to the machine. Measuring lengths up to 6 m (237 in.) are available.

Measuring standard - AURODUR steel scale tape
Output signals - 1 Vpp
Signal period - 40 um
Accuracy grades - ▒ 15 Ám
Recommended measuring steps - 1 um or 0.1 Ám
Measuring lengths - 240 mm to 6040 mm
Reference mark - One position selectable or distance-coded
