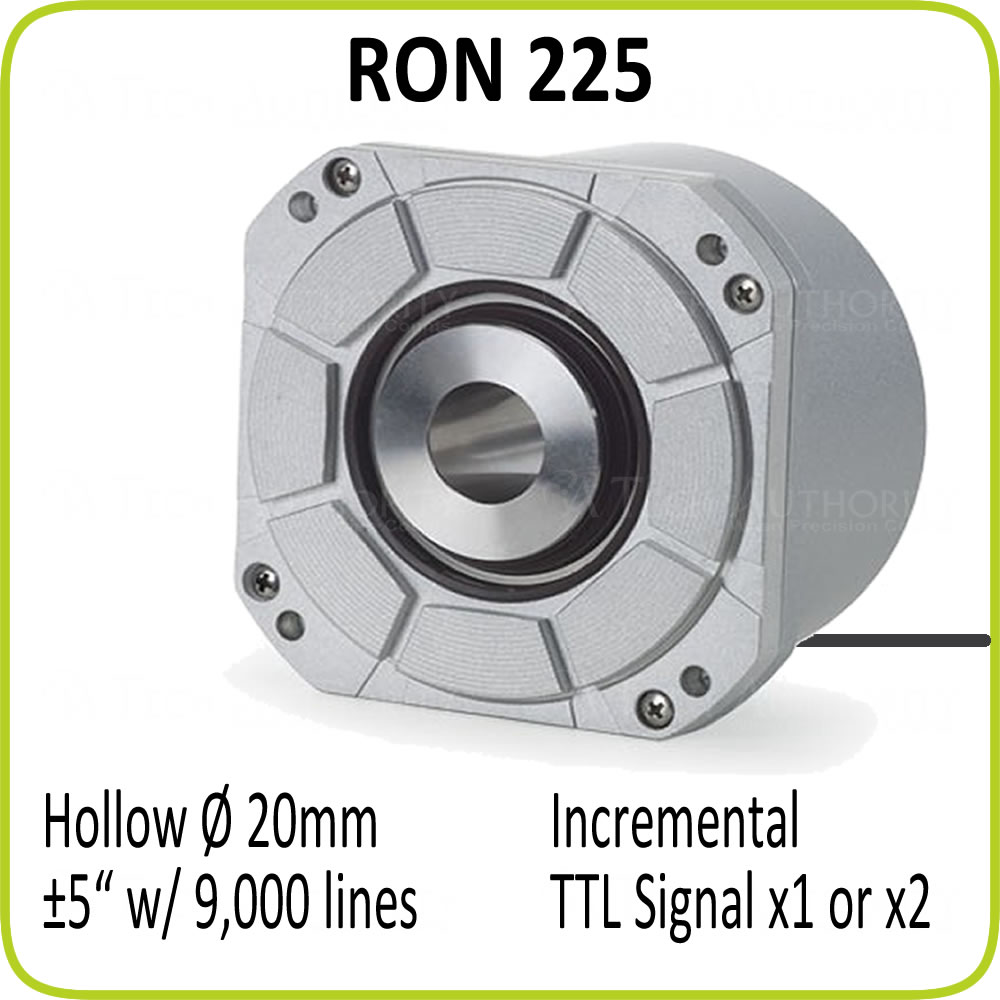

RON 225 by HEIDENHAIN

Compact incremental angle encoder with integral bearing and integrated stator coupling for measuring steps to 0.005° with 5v TTL Quadrature Output

            click here for more images
With hollow through shaft and integrated stator coupling: rugged design, typical applications include rotary tables, tilting tables, positioning spindles and synchronization monitoring. For measuring steps to 0.005°.

Accuracy/Line count -
± 7`/9000
± 6`/10000
± 5`/18000
Recommended measuring step for 18 000 lines - 0.005°
Incremental signals - 5v TTL Quadrature
Max. scanning frequency - 1 MHz
Permissible speed - 4000 rpm
