Brand : HEIDENHAIN

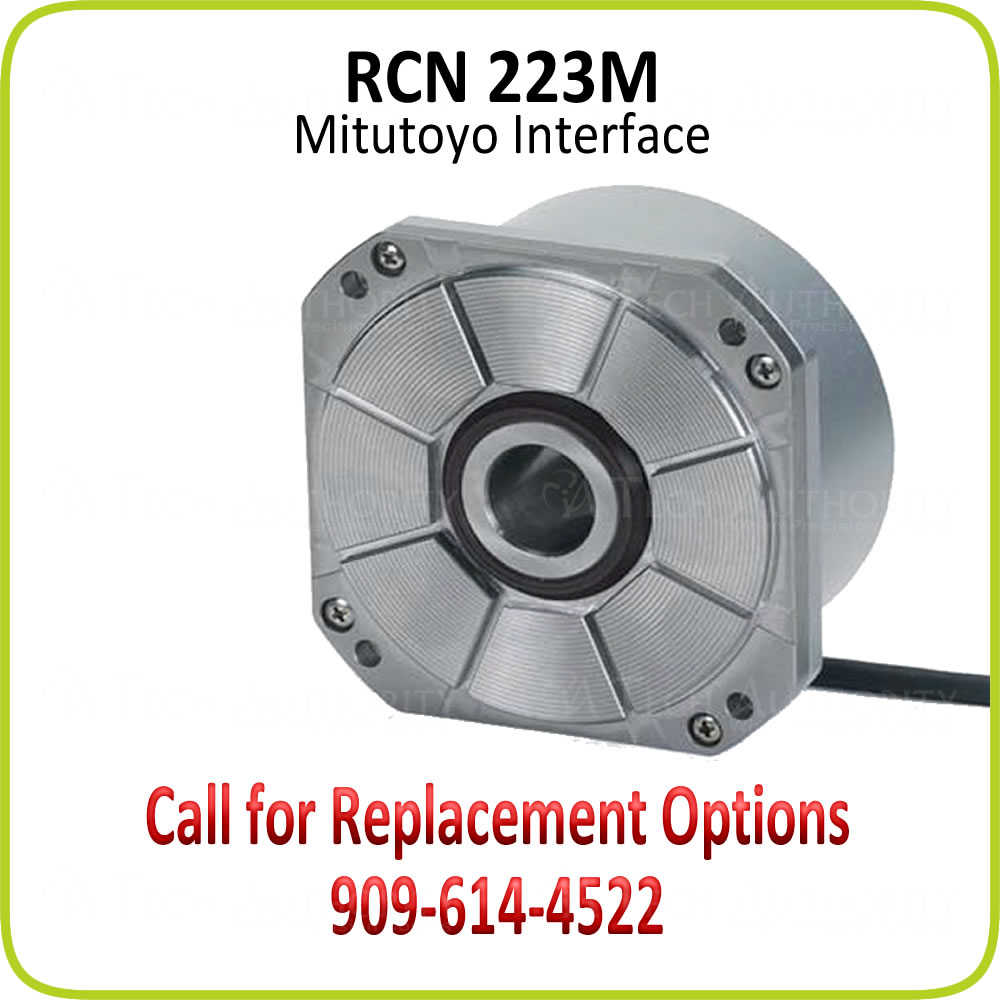

RCN 223M
-
An RCN absolute angle encoder features an integral stator coupling which, in comparison with encoders with solid shaft and separate coupling
- Request A Quote
Description
Shaft coupling- Integrated stator coupling, Absolute Measuring Methods System Accuracy- ± 5`` or ± 2.5`, 20mm Shaft Diameter Absolute position values- Mitsubishi High Speed Serial Interface Positions per revolution-8388608 (23 bit) An RCN absolute angle encoder features an integral stator coupling which, in comparison with encoders with solid shaft and separate coupling, provides the following advantages: - Higher system accuracy - During angular acceleration of the shaft the coupling takes up only the torque resulting from bearing friction - Shorter overall length - Simpler mounting
