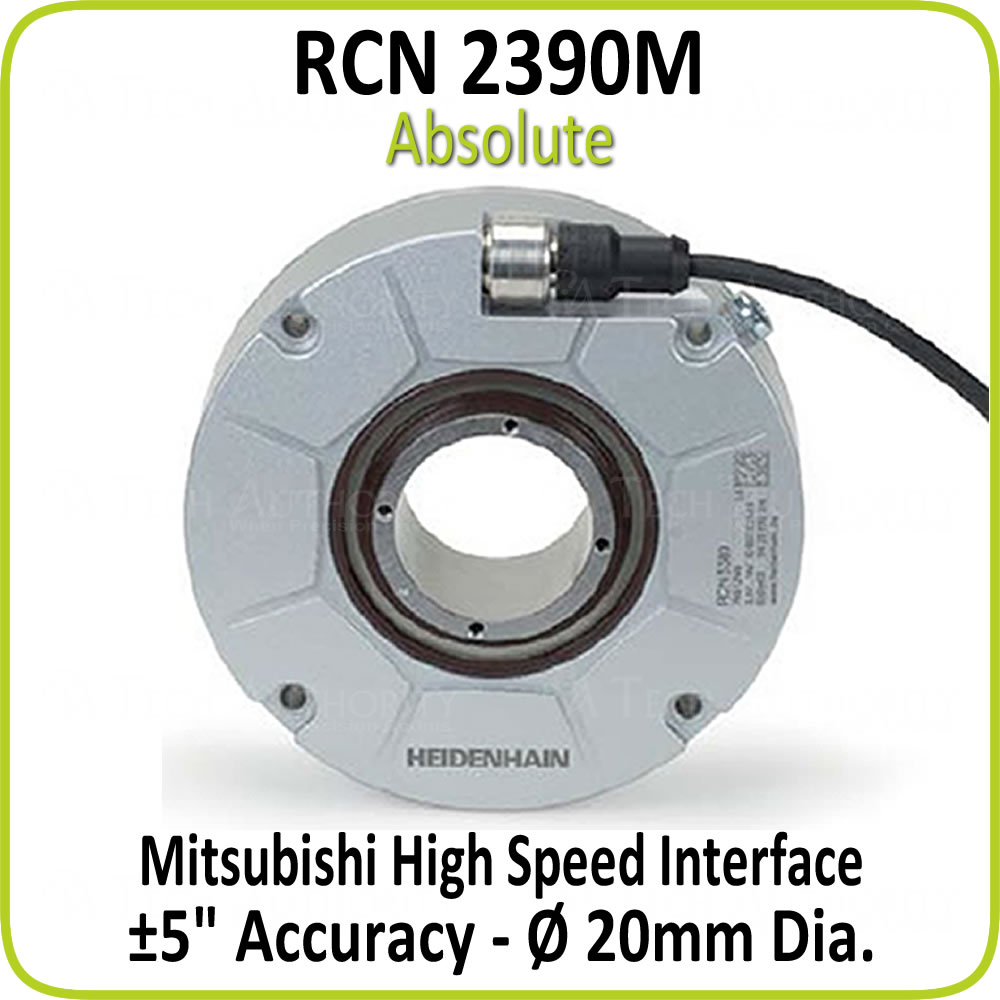

RCN 2390M (Mitsubishi Interface) by HEIDENHAIN
Angle Encoders with Integral Bearing for Mitsubishi Controls
click here for more images
HEIDENHAIN angle encoders with integral bearing are characterized in particular by very high system accuracy. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components.
The integrated stator coupling in the RCN series guarantees lowest possible error from the effect of tolerances in the shaft coupling. All angle encoders with integral bearings feature shaft seals that ensure resistance to contamination (IP64 protection). These encoders enjoy an entire spectrum of possible applications in machine tools, measuring machines, telescopes, printing machines and many other areas.
Replacement to the RCN 223M
Absolute measuring method
+/- 5` accuracy
20mm hollow through shaft
Integrated stator coupling
Compact size for limited installation space
System accuracy includes the deviation caused by the shaft connection
Outstanding dynamic response
Simple installation for rotary and swivel tables
