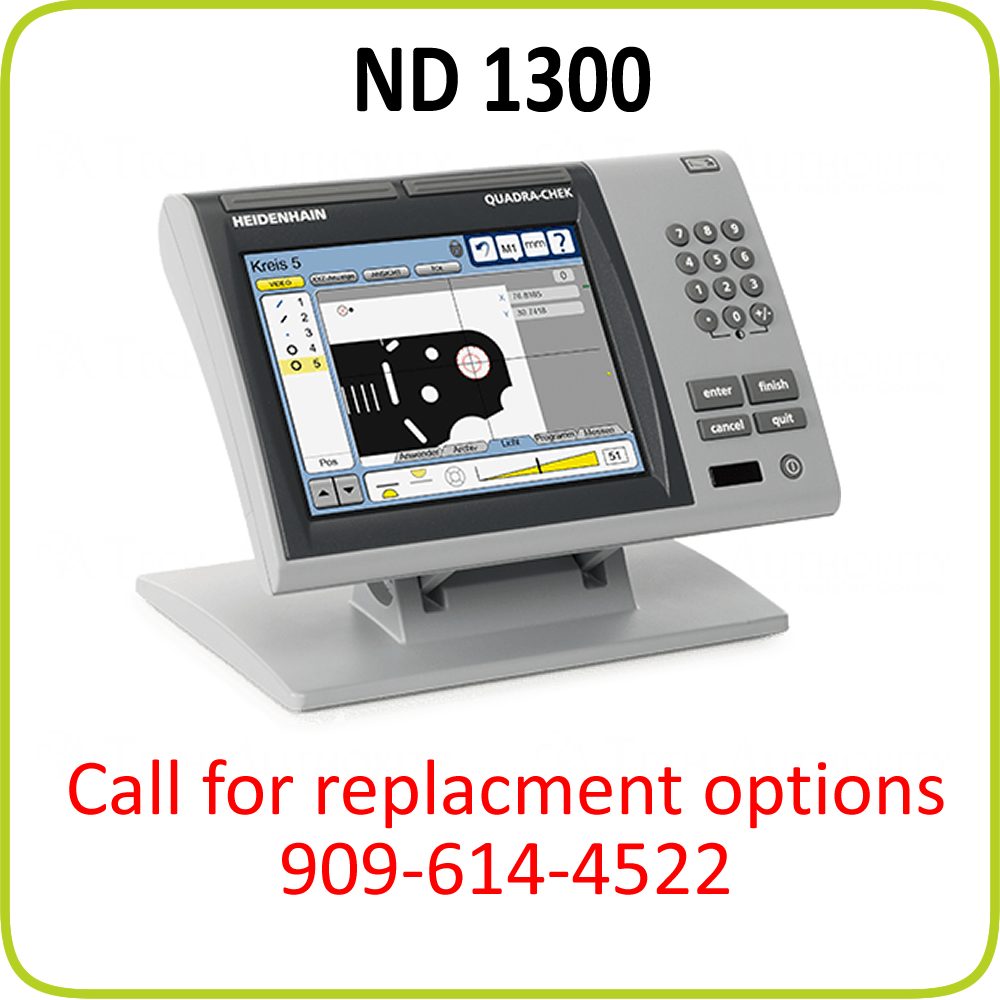

ND1300 Quadra-Chek Series by HEIDENHAIN

Digital readouts for convenient 2-D measurement acquisition.

            click here for more images
The ND1300 QUADRA-CHEK digital readouts can support up to four axes. They function as measuring computers with 3-D acquisition of measurement points, suiting them for measuring microscopes, measuring projectors and profi le projectors, as well as for video
measuring machines if the video edge detection option is selected.

The ND1300 QUADRA-CHEK digital readouts have a large 8.4 inch color touch screen which enables simple operation guidance for displayed values, dialogs, inputs and soft keys. The robust, diecast aluminum enclosure meets the demands of metrology and production control.

Predefined features (point, line, circle) are available for measurement. The `Measure
Magic` function makes measurement especially easy: it selects that feature which best matches the shape implied by the points probed. In addition, you can establish relationships (distances, angles) between features. The ND 1300 with video option optimally combines in one unit the functions of a position display unit with the capability of displaying the image of the measured object directly on the screen. The CNC option lets the ND 1300 work as a full-fl edged control, directly controlling the positioning of the X, Y, Z and Q axes.

The ND1300 has an RS-232-C/V.24 serial interface for communication with a PC. You can connect printers or memory media directly to the USB port. Touch probe ready.

Acceptable inputs include 1Vpp and TTL signals.
