Brand : HEIDENHAIN

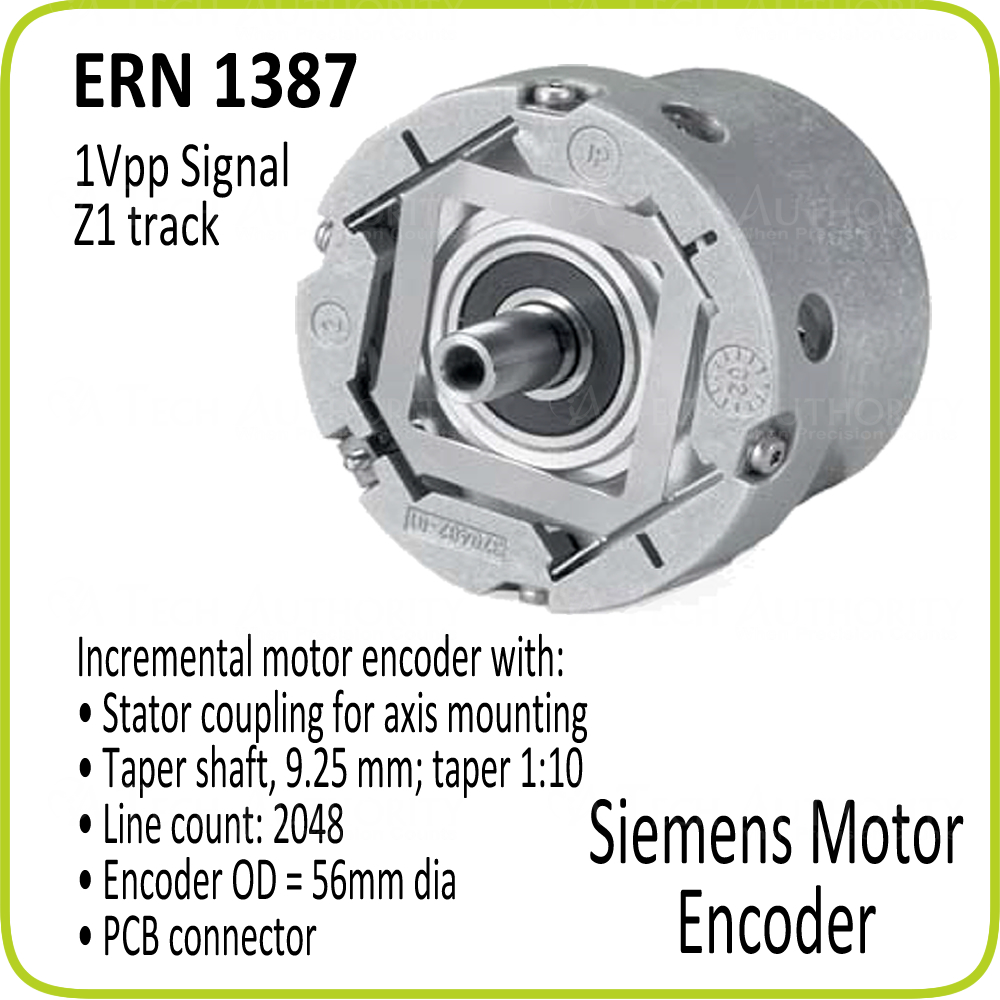

ERN 1387
-
The HEIDENHAIN ERN 1387 compact incremental single turn rotary encoder is designed for servo motors/drives applications with integral bearing and mounted stator coupling with a tapered shaft.
- Request A Quote
Description
The HEIDENHAIN ERN 1387 servo motor/drive single turn encoder offers the following features…
- Taper shaft Ø 9.25mm; taper 1:10
- 1Vpp incremental interface
- 1Vpp commutation signals (Z1 track)
- Line count is 2048
- Line count accuracy is 2048/±20“
- Single reference mark
- Cutoff frequency is 210KHz
- Voltage supply if DC 5V
- Mechanical permissible speed is 15 000 rpm
- 14 pin PBC connector
- Permissible axial motion of measured shaft is ±0.5mm
- Minimum operating temperature is –40°C
- Maximum operating temperature is 120°C
- IP40 protection rating
