Brand : HEIDENHAIN

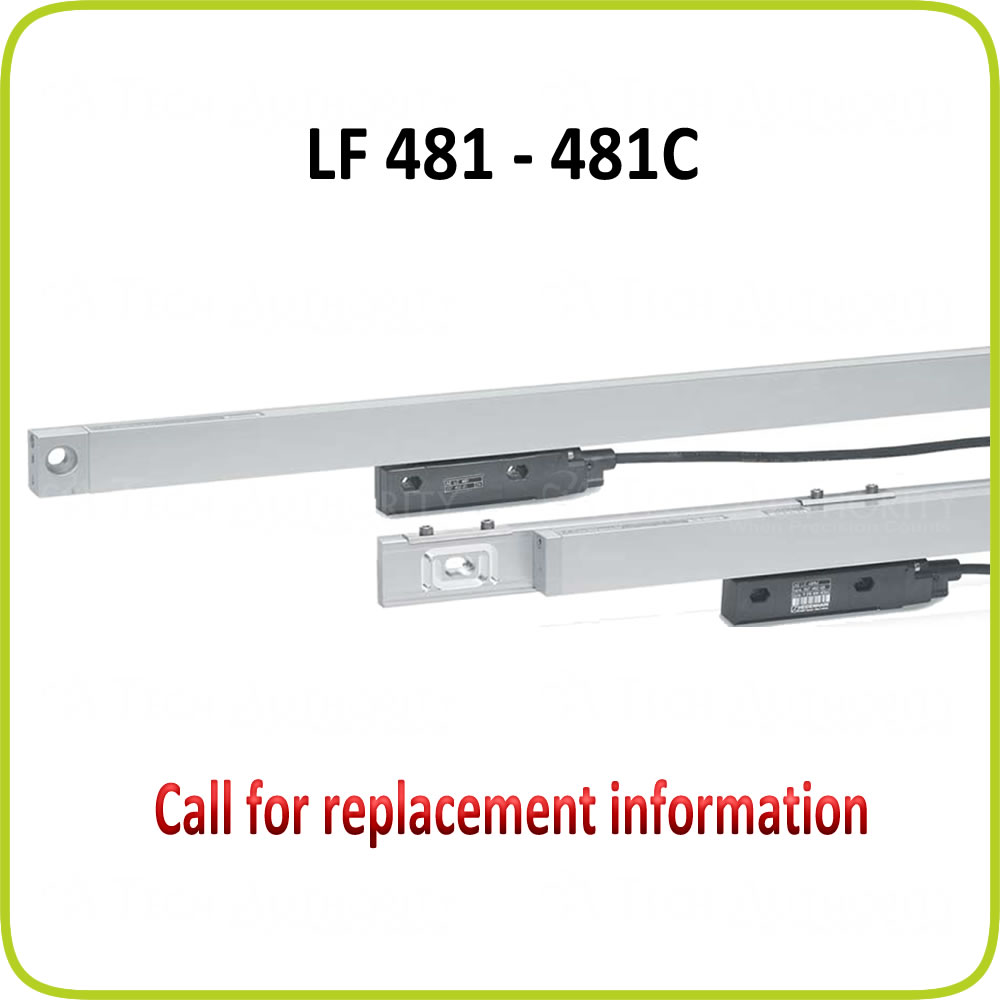

LF 481 / 481C
-
HEIDENHAIN LF 481 / LF 481C series incremental linear encoder with slim-line housing, ultra-small signal period, 1Vpp signal and measuring lengths from 50mm to 1220mm.
- Request A Quote
Description
HEIDENHAIN LF 481 / LF 481C single piece linear scales with DIADUR phase grating on steel.
- ±3'' and ±5'' accuracies
- Signal type: 1Vpp incremental
- Reference mark: Selectable every 50mm or Distance-coded
- Signal period: 4µm
- Measuring steps to 0.1µm
- Cutoff frequency (-3 dB): 250.00 kHz
- Power supply: 5V+5%-10%
- Degree of protection: IP53 or IP64 with compressed air from DA 400
- Operating temperature: ≥0/+50 °C
- Cable length: separate cable up to 150 meters
- Coefficient of linear thermal expansion is 10 · 10–6 K–1
