Brand : HEIDENHAIN

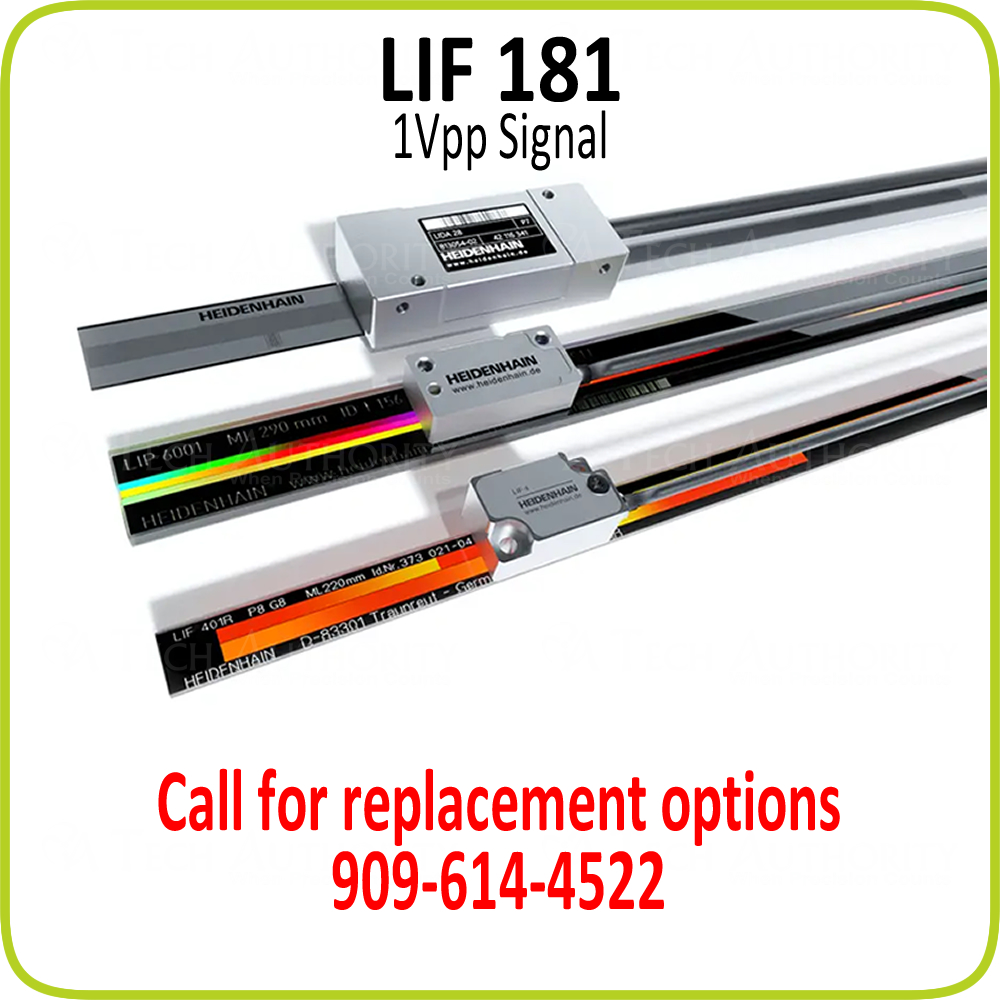

LIF 181
-
Incremental linear encoder for measuring steps of 1um to 0.1um with 1Vpp output and measuring steps down to 100nm. Offers easy mounting with PRECIMET® adhesive film, or fastening with fixing clamps for measuring lengths up to 3 meters.
- Request A Quote
Description
HEIDENHAIN LIF 181 with a grating period of 8 µm, manufactured with DIADUR glass, offering 1Vpp incremental signal. LIF series linear encoders are fixed with HEIDENHAIN PRECIMET® elastic adhesive film directly onto the mounting surface. This adhesive film ensures a defined thermal behavior and is resistant to solvents. The mounting procedure is quite fast thanks to its simplicity and to relatively large mounting tolerances.
- Measuring standard - DIADUR phase grating on glass
- Output signals - 1Vpp
- Signal period - 4um
- Accuracy grades - ± 3µm
- Recommended measuring steps - 1um to 0.1µm
- Measuring lengths - 70mm to 3040mm
- Reference mark - One at midpoint of measuring length or distance-coded
