Brand : HEIDENHAIN

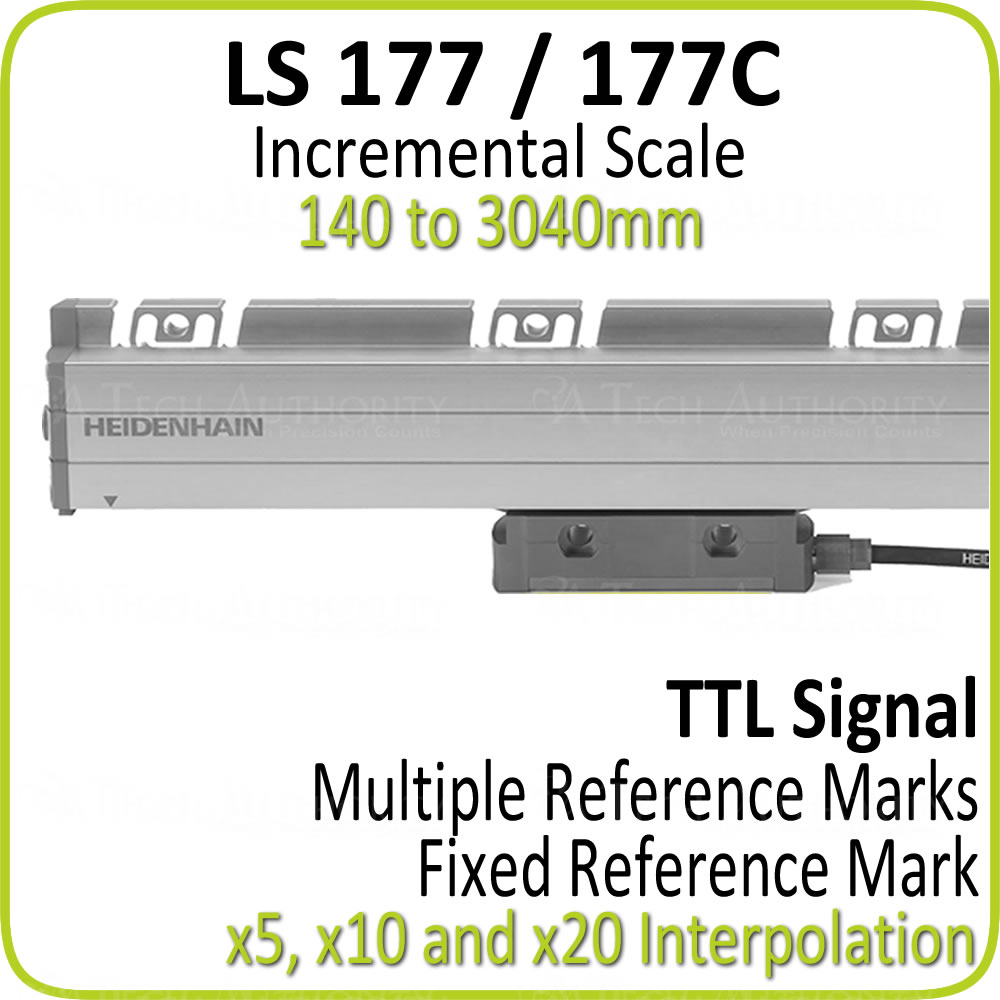

LS 177 / 177C
-
The HEIDENHAIN LS 177 / 177C series incremental linear encoders are designed for CNC machine tools featuring full-sized scale housing, high vibration rating for measurements to 0.5µm
- Request A Quote
Description
The HEIDENHAIN LS 177 / 177C has defined thermal behavior and serves as a standard linear scale uses on machine tools and measuring applications worldwide. The LS 177 / 177C offers the following features...
- DIDUAR glass graduation (20µm grating)
- ±5µm or ±3µm accuracy grades
- TTL incremental signals (x5, x10 or x20 interpolation)
- 4µm or 2µm signal period (determined by interpolation)
- Measuring lengths from 140mm to 3040mm
- Distance Coded reference marks (every 50mm) or single center reference mark
- Max. cable length is 150 meters
- IP 53 or IP64 with DA 400 air purge kit
