Brand : HEIDENHAIN

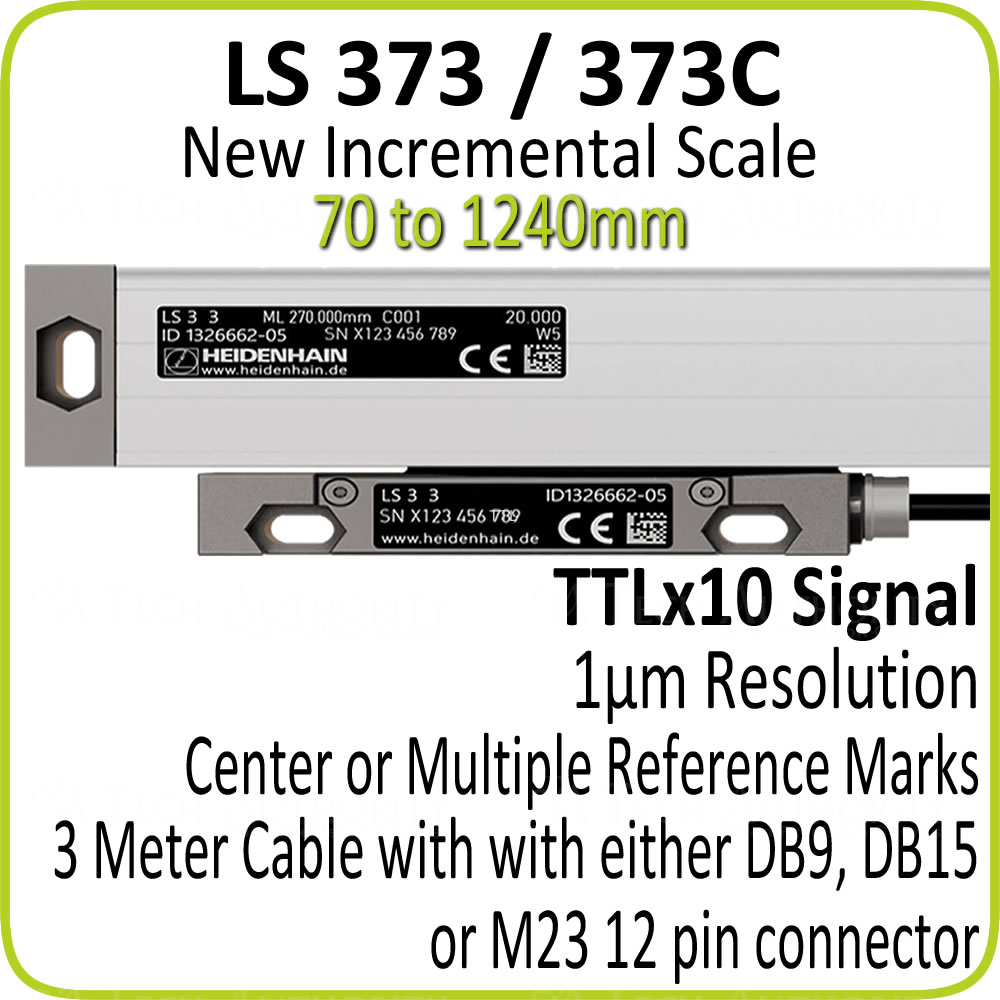

LS 373 / 373C
-
The HEIDENHAIN LS 373 / LS 373C series linear encoders are used for simple positioning tasks, such as manual mills, grinders and general machine tools in conjunction often with a digital readout display.
- Request A Quote
Description
The HEIDENHAIN LS 373 / LS 373C incremental scales for manual machines offer the following features.
- System accuracy: ± 5''
- Travel lengths from 70mm to 1240mm
- Signal type: TTL incremental (1-fold, 5-fold, 10-fold, 20-fold)
- Reference mark: Selectable one center reference mark or Distance-coded
- Signal period: 20µm
- Cutoff frequency (-3 dB): 400.00 kHz
- Power supply: 5V+5%-10%
- Degree of protection: IP53
- Operating temperature: 0/+50 °C
- Cable length: 3 or 6 meters with multiple connector options
