Brand : Renishaw

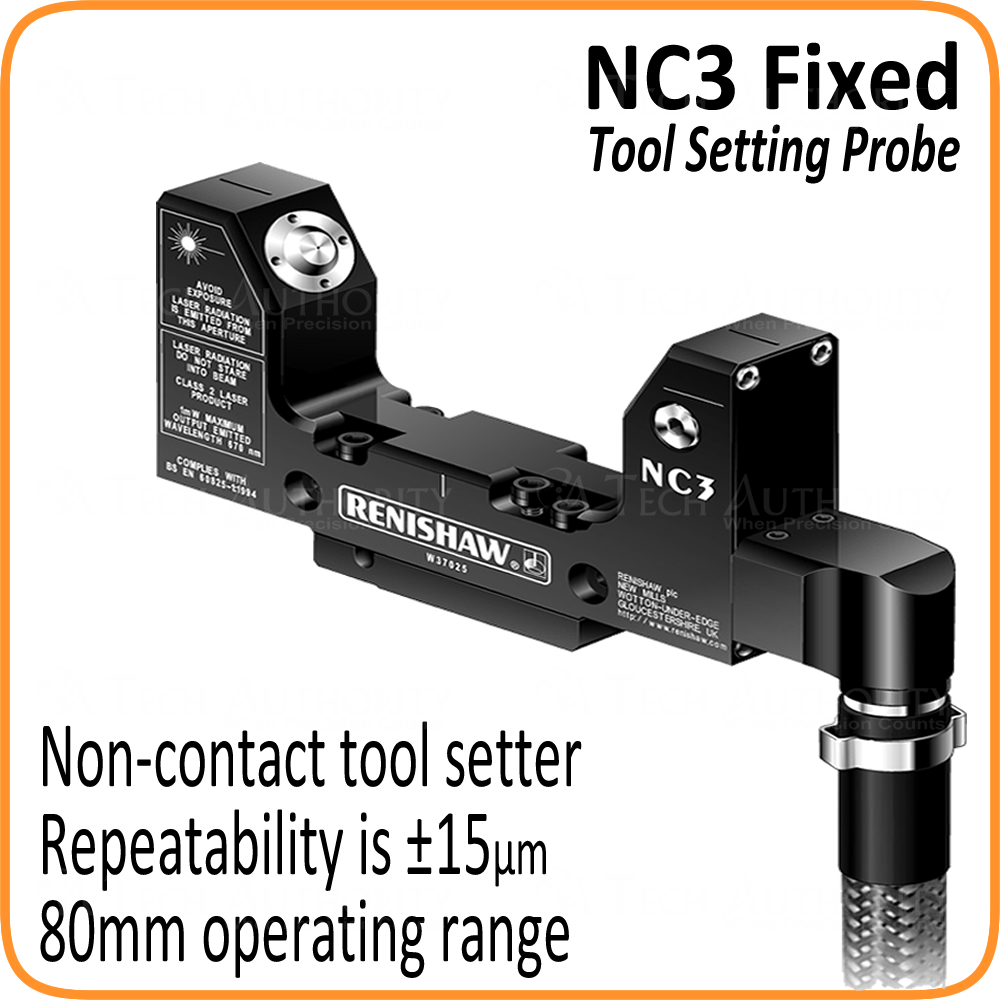

NC3 Tool Setter and Detector for Machining Centers
-
The Renishaw NC3 is a compact 2 axis non-contact tool setting probe, with broken tool detection capability.
- Request A Quote
Description
The Renishaw NC3 is a compact 2 axis non-contact tool setting probe, with broken tool detection capability. Tools as small as Ø0.2 mm can be measured anywhere along the laser beam and set-up is more simple than focused laser systems as there is no focal point to identify. The NC3 offers the following features…
- High repeatability (±0.15)
- Low air consumption
- Rapid tool-breakage detection
- Compact design 135mm x 26mm x 77mm
- Measurement of tools of Ø0.2mm and larger
- Broken tool detection of tools as small as Ø0.1mm.
- Sealed to IPX8 with air on
- Single conduit exit from product
- Drip rejection mode
