Brand : Renishaw

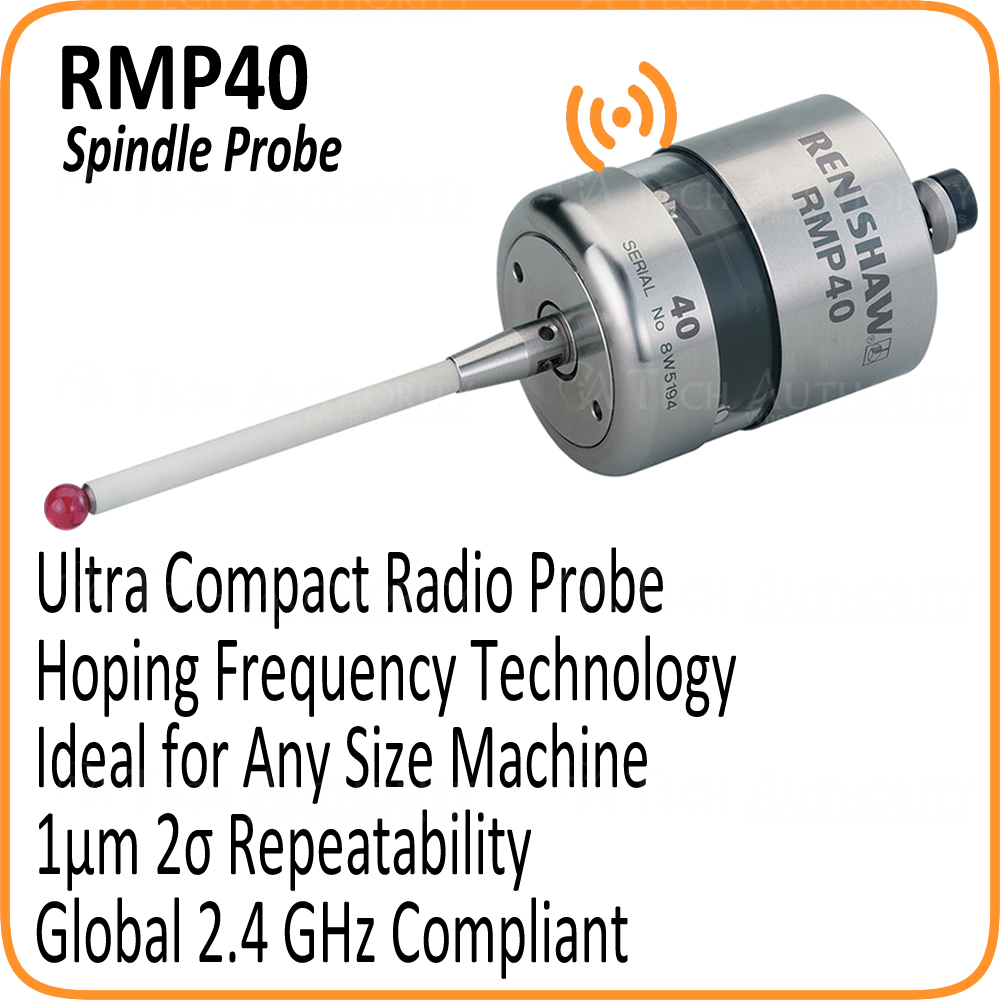

RMP40 Machine Tool Probe
-
The Renishaw RMP40 is the first machine tool probe to use frequency hopping (FHSS) transmission. This ultra-compact RMP40 probe is especially suited to multi-axis and mill-turn applications, whilst its variant, the RLP40 touch probe, is specifically designed for more hostile turning environments. A transmission only module RMP40M is also now available.
- Request A Quote
Description
The Renishaw RMP40 is the latest generation radio transmission spindle probe available from Renishaw, and boasts being one of the smallest, measuring just 40mm (diameter) x 50mm (height) and offers the following features. The robust transmission protocol and small body make the RMP40 the ideal choice for multi-tasking applications where the line-of-sight between probe and interface cannot always be maintained.
- Proven kinematic design
- Secure frequency hopping spread spectrum (FHSS)
- 2.4 GHz waveband compliant with radio regulations in all major markets
- Ultra-compact design
- 1µm 2σ repeatability.
- Operate over a 15 meter range
- Stainless steel uni-body (combined probe and transmitter)
- Turned on via a radio pulse from the RMI or using the on-board centrifugal switch

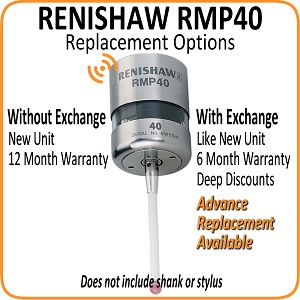

Did you crash an RMP40? We have new and "like-new" probes in stock with exchange.
