Brand : HEIDENHAIN

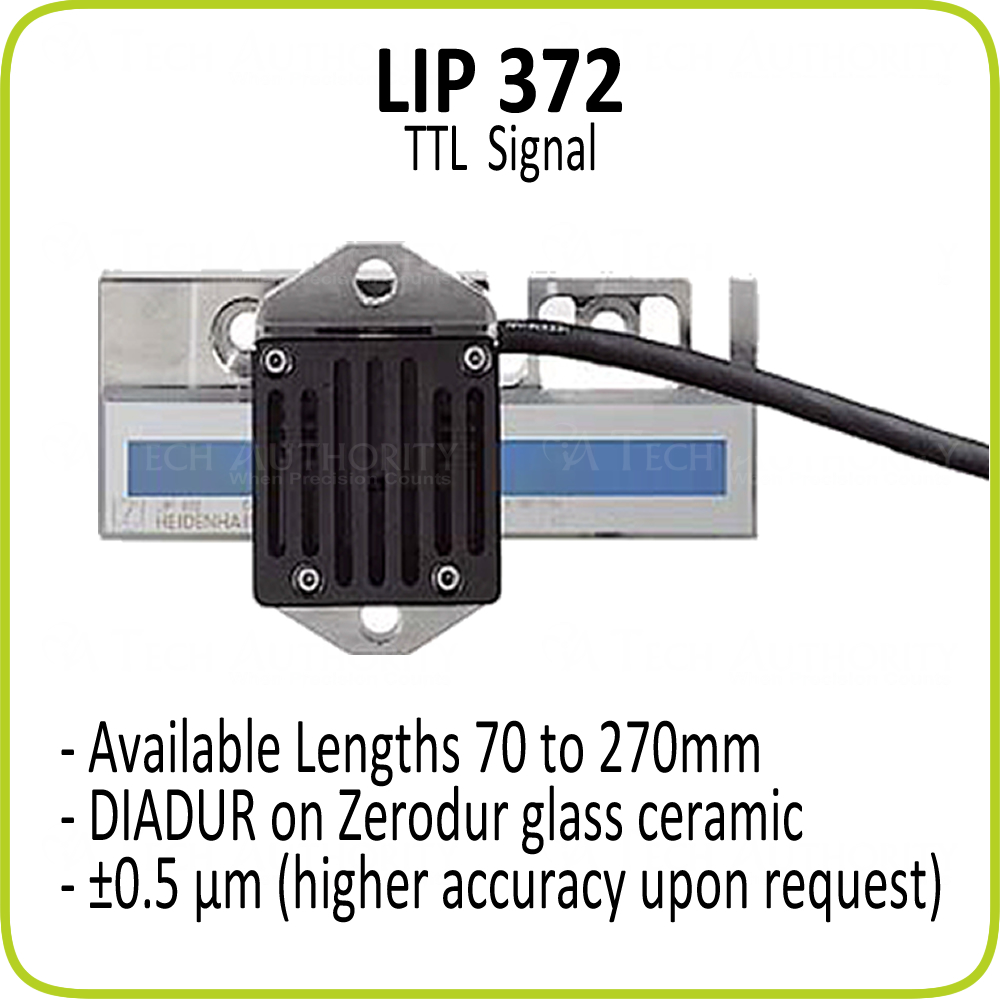

LIP 372
-
The HEIDENHAIN LIP 372 is an ultra-accurate incremental linear encoder with a measuring step of 0.5µm and offers a TTL signal output.
- Request A Quote
Description
The HEIDENHAIN LIP 372 series is available in accuracy grades from ± 1µm to ± 0.1µm. Through the choice of scale material it is possible to use a measuring standard whose thermal behavior is comparable to that of the measured objects. A grating period of 4µm produces an output signal period of 2µm. This results in a measuring step of only 0.5µm even without interpolation. The high uniformity of the scanning signals permits measuring steps as fine as one nanometer.
- DIADUR phase grating on Zerodur glass ceramic
- Grating period: 0.512μm
- Signal period - 0.004um
- Accuracy grades - ± 0.1µm over 70mm measuring length
- TTL signal output
- Recommended measuring steps - 0.001µm
- Measuring lengths from 70mm to 270mm
- Reference mark - No
The LIP 372 can be replaced by the LIP 382 (1Vpp) and IBV converter box. Please call for details.
